Product Details:
|
| Certification: | CE, BV , ISO9001 | Plastic Processed: | PP PET |
|---|---|---|---|
| Type: | Strapping Band Machine | Screw Design: | Single Screw |
| Application: | Strap | Place Of Origin: | Shandong, China |
| After-sales Service Provided: | Engineers Availiable To Serive | ||
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||

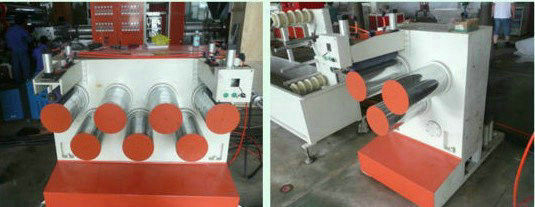

High Speed Strapping Band Machine , PET PP Recycle Packing Straps Machine
Quick detail:
1.material: PP PET
2.color: wthite bule black yellow
3. application: strap
4. power: 37kw
5.voltage: 380v/50hz
6. width: 5-19mm
7. weight: 4T
8.port: QingDAO
The main technique parameter
| Model | SDD65 | SDD80 | SDD45/65 | SDD45/80 | SDD/80 |
| Extruder diameter(mm) | 65 | 80 | 45/65 | 45/80 | 80 |
| Productivity(kg/h) | 20-35 | 20-35 | 30-60 | 30-80 | 30-60 |
| Winding mode | Mechanical or manual | Mechanical or manual | Mechanical or manual | Mechanical or manual | Mechanical or manual |
| Haul off multiple | 5-10 | 5-10 | 3-5 | 3-5 | 6-10 |
| Weight(kg) | 28 | 40 | 46 | 56 | 50 |
| Production line length(m) | 12x2.8x1.6 | 14x2.8x1.6 | 12x3.8x1.6 | 15x3.8x1.6 | 18x3.2x1.6 |
| Product specifications(mm) | 10-22 | 10-22 | 10-22 | 10-22 | 10-22 |
| Total weight(t) | 2 | 2.6 | 3 | 3.8 | 3.6 |
Description:
PP Packing Belt, Drawbench Machinery
Accurate dosing and raw material blending
Preheat and dry circulating automatically
Even plastication, stable extrusion and exact temperature control
Measuring pump ensure consecutive and stable production
Big hauling force stretching device and insulation oven
Big capacity stainless steel water trough, automatic liquid level control.

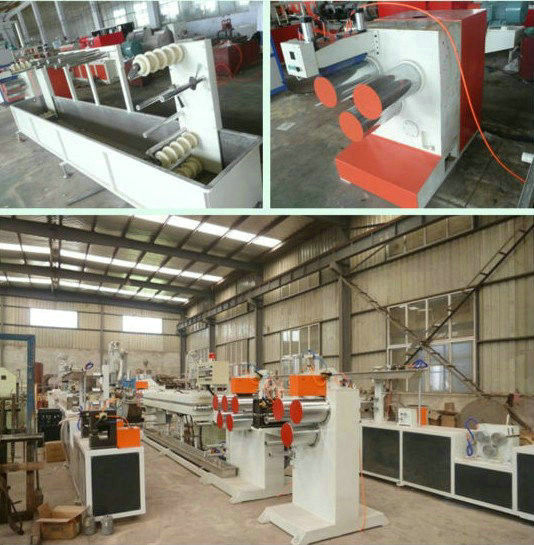

Thermal forming and haul off device PET Package strap production line
Twin screw extruder with specific design:
Competitive Advantage:
100%recycle material
strong vacuum system to dispense with dehumidify and dry.
the recycle material consumption is lower 40% than raw material.
