Product Details:
|
| Place Of Origin: | Shandong China(Mainland) | After Sales Service: | Engineers Availiable To Serive |
|---|---|---|---|
| Product Type: | Twin Pipe Extrusion Machine | Automatic Grade: | Fully Automatic |
| Plastic Processed: | PE | Max Output: | 220kg/h |
| Application: | Pipe | Control: | PLC Control Systems Availiable |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
PE Plastic Pipe Extrusion Line , PE Twin Pipe Machine Plastic / Extruder
Quick detail:

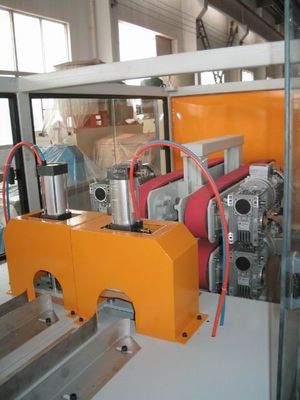

1. First class pipe die was designed with many years experience, twin pipe vacuum sizing system, twin pipe hauling mechanism, synchronous cutting device.
2. PVC pipe processing flow:
Raw Material+additive → Mixing →Coneying feeding → Forced feeding → conical double screw extruder →”one mould two pipes” mould → calibrator → double spray vacuum calibration tank →ink printer → double belt haul-off → double uplift cutter → double pipe rack → finished product inspecting & packing
Specification:
1. It is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.Saw cutter and planetary cutter for choice.Double-strand and four-strand for choice for small pipes.
2. Feature of plastic PVC pipe making machine:
CE&ISO certificate
Diameter:16mm-800mm
Conical double screw
Output: 100-800kg/hr
Applicable: water pipe /drain pipe for agriculture and construction, gas pipe, etc.
3. Famous Brand Show
SIEMENS MOTOR
ABB/DELTA INVERTER
OMORN TEMPERATURE METER
SIEMENS RELAY /CONTACTOR
GUOMAO Gear Box

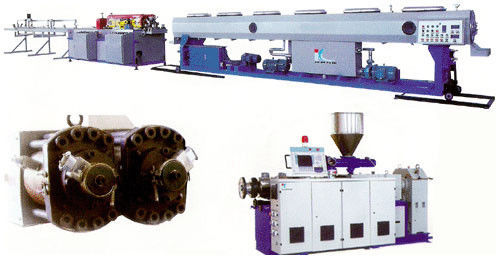

Production Line Structure
| Extruder Model | SJ-51X105 | SJ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe diameter(mm) | 16-63 | 16-63 |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.output | 160(kg/h) | 220(kg/h) |
Why choose us and our advantages:
1. we have many years experience
2. we have goos after sales service
3. we have resonable price
4. The stable operation and output.
