Product Details:
|
| Condition: | New | Brand Name: | AORUI |
|---|---|---|---|
| Processing Type: | Extrusion | Automatic Grade: | Fully Automatic |
| Dimension: | Sccording To Model | Screwdesign: | Single Screw |
| Place Of Origin: | Shandong , China(Mainland) | ||
| High Light: | plastic extruder machine,plastic extrusion machine |
||

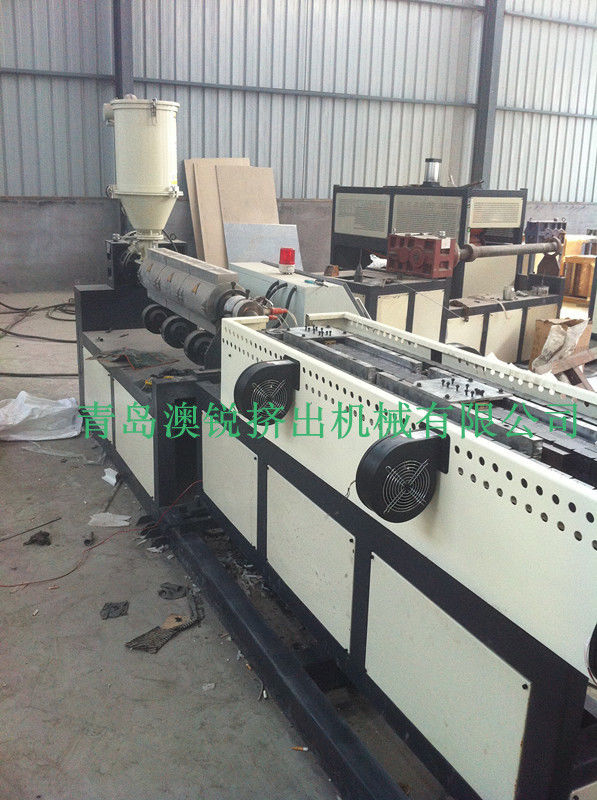

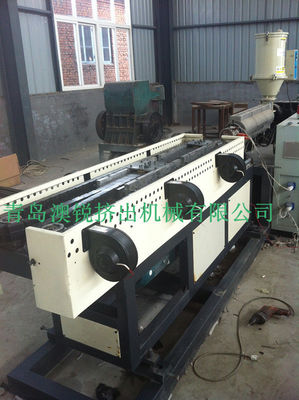

PE Plastic Extrusion Line , PE Carbon Sprial Reinforcing Pipe Enquipment Plant Extruder
Quick detail
1. pipe scope : 50-200mm
2. production speed : 0.6-1.5m/min
3. certification : CE BV ISO9001
4. long service life
Description:
1. Special single screw extruder for the use of polyolefine material , high speed extrusion and effective plasticization. The special detachment type mixing screw and the standars designed die with spiral structre & reasonable channel are applicable to produce pipes with smooth inside and outside face.
2. Unique sizing and cooling mode is capable of producing pipe scope 50-200mm , production speed is up to 0.6-1.5m/min. Machinery is in sole possession of the special design to sizing cooling way to make the speed for leading position of the same line.

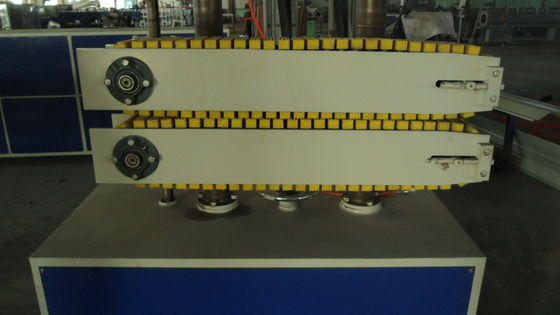

3.Close type corrugater and vacuum for forming.Forming mould is moving in a tunnel.Forming tunnel os clod by water.Forming mould is made of hard alloy steel and anti-corrosion and abrasion.No any connection between forming mould, then reduce time to change.Provide single wall corrugation dead die.
4. Our company will provided relevant information on various technology and business consulted by customers. After equipment arrival , our company will arrange professional engineers to install the machine and train the workers how to operate the machine untill they can operate it by themselves.
Applications:
It is mainly used in producing various diameters and wall-thickness of PE pipes for aggriculture
and constructional plumbing cable laying etc. Our PE pipe extrusion line has features of low consumption, high output, stable running.
Specifications:
|
Model |
AS-65 |
AS-75 |
AS-90 |
|
|
Extruder |
|
AS-SJ65/28C |
AS-SJ75/28C |
AS-SJ90/28C |
|
Range of Pipe Dia. |
mm |
25-50 |
32-64 |
38-75 |
|
Installed Capacity |
kw |
33 |
45 |
58 |
|
Average Energy Consumption |
kw |
19.5 |
30.2 |
36.5 |
|
Dimension (L×W×H) (Approx) |
m |
8×3.3×1.5 |
9×4×1.8 |
12×4.5×2 |
|
Total Weight (Approx) |
T |
3.5 |
5 |
6 |
Competitive Advantage:
1. good after-service
2. spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
