Product Details:
|
| Automatic Grade: | Fully Automatic | Condition: | New |
|---|---|---|---|
| Motor Power: | 37kw | Type: | Pvc Pipe Production Line |
| Capacity: | 160-220kg/h | Place Of Origin: | Shandong , China |
| Application: | Pipe | ||
| High Light: | plastic extruder machine,plastic extrusion machine |
||

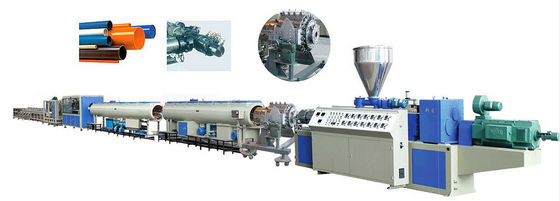

PVC Plastic Extrusion Line , Fully Automatic PVC pipe production line
Quick detail
Pipe material: PVC
Product type: pipe
Condition: new

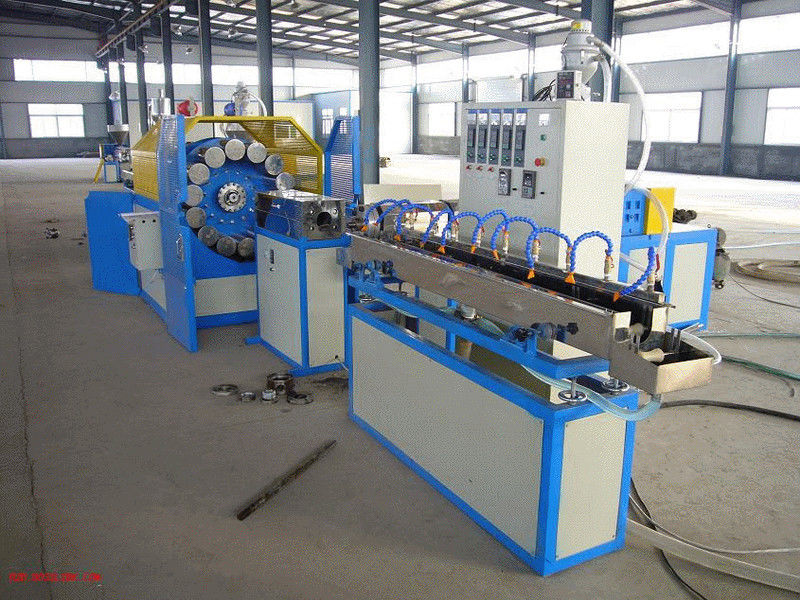

Product: steel wire reinforcing pipe
Certification: CE UL CAS
Brand: AORUI
Description:

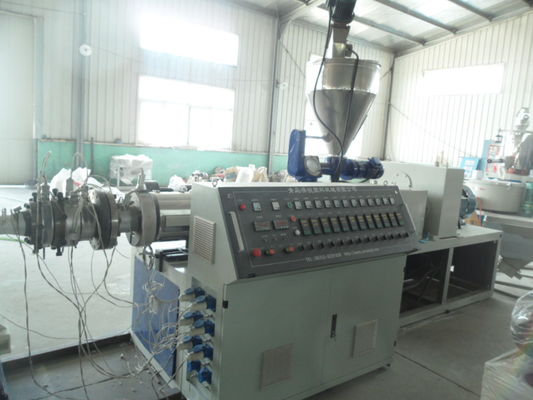

1,Adopting two sets of conial twin-screw extruder with reverse outward rotation, Die, spiral grooved core-rod for option roder to produce foam core pipe with in-wall and hollow wall pipe with screw thread. Adopting vacuum calibrating and spray cooling baths, accurate calibration, fast cooling. The baths are made of stainless steel. Haul-off machine with pheumatic control. Saw bit cutter; Phnumatic automatic stacker; Concentrate control, high automation, easy operation. Auxiliary machine: mixing machine,crusher,milling machine
2. Screw diameer ￠65/75 110 125 160
Screw hardness HV＞740
Barrel hardness HV＞940
Screw and barrel material 38CrMoAlA
Depth of screw and barrel nitrogen:0.4-0.7
Screw length and ratio 22:1
Screw direction Converse-direction, outward rotation
screw 38CrMoAl,nitrogen treatment
barrel blower fan cooling,cast aluminum heater
motor power 37KW
barrel heating zone 4 zones
barrel cooling power 3*180W
heating power: 26KW
vacuum exhaust: vacuum pump:1.5KW
die head heating zone 6 zones
die head heating power 20-32KW
Measure feeding system power:1.5KW
Spring feeder 300Kg
capacity 160-220Kg/h
Reducer and Distribution box:
Basic structure horizontal installing
Cooling mode outer circulation cooling system
Gear material:20CrMnTi, Carburization hard tooth surface,grinding treatment
Specification:
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Applications:

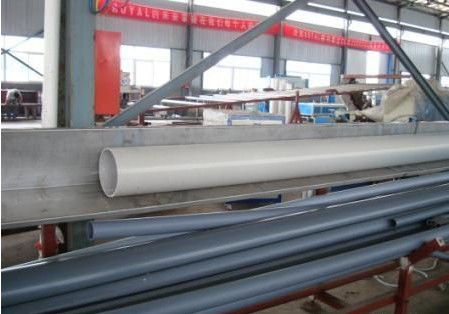

It mainly used in the area of agricultural water supply system , architectural water supply system , pavement of cables,ect.
our advantages:
1. good after-service
2. spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
