Product Details:
|
| Certification: | CE BV ISO9001 | Screw Design: | Double Screw |
|---|---|---|---|
| Motor Power: | 37kw | Voltage: | 380v50hz |
| Capacity: | 160-220kg/h | After Sales Service: | Engineers Availiable To Serive |
| Application: | Pipe | Condition: | New |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
PVC Plastic Extrusion Line , 16-63mm PVC Cable Protection Pipe Production Line
Quick detail

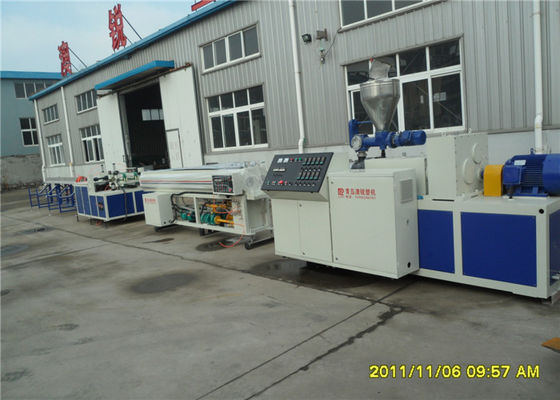

1. This line is composed by:
*Feeder
*Conical twin-screw extruder
*Pipe mould
*Vacuum calibration tank
*Spray box

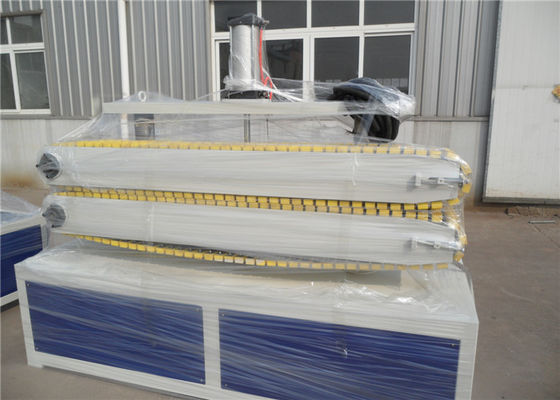

*Haul-off

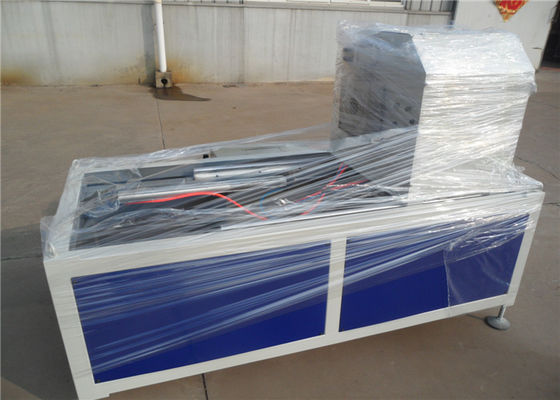

*Cutter
*Stake
2. The extruder and haul-off adopt imported AC frequency speed controller, vacuum pump and haul-off motor all adopt superior products. The haul-off method has two-claw, three-claw, four-claw, six-claw and etc. You may choose saw blade cutting type or planetary cutting type.
Description:
1. PVC pipe extrusion line is mainly used for producting plastic pipe for agriculture water supply & sewage, for building industries water supply & sewage, for cable and wire laying.
2. The extrusion line can produce pressure water pipes, drainage pipes, industrial pipes and cables duct. The screw structure for the corresponding designed to meet the processing of high filling material(Caco3) pipe requiement, according to the use of pipe, change molds and the corresponding auxiliary equipment, can be processed produce UPVC pipe,CPVC pipe, PVC-M pipe, PVC-O pipe, foam core layer pipe, foam inside the spiral hollow wall spiral pipe.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Applications:
It mainly used in the area of agricultural water supply system , architectural water supply system , pavement of cables,ect.
our advantages:
1. good after-service
2. stable capcity and high output
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
