Product Details:
|
| Certification: | CE BV ISO9001 | Screw Design: | Double Screw |
|---|---|---|---|
| Processing Type: | Extrusion | Brand Name: | AORUI |
| Automatic Grade: | Fully Automatic | Application: | Pipe |
| After Sales Service: | Engineers Availiable To Serive | ||
| High Light: | plastic extruder machine,plastic extrusion machine |
||
PVC Plastic Extrusion Machine ,PVC Double Screw water pipe making machine
Quick detail
pvc plastic extrusion line
double screw extruder
long service time
Description:
1.Product size: Outside diameter 16-630mm . Output capacity: 120~800kg/h . Cooling water temperature<25℃,inlet pressure>0.3Mpa . Air pressure: > 0.6Mpa . Electric power supply: 3Phase/380V/50HZ or customized to your requirement.
2. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.
3. The extruder and extractor adopt the imported AC frenquncey control device.The vacuum pump and the main motor adopt the famous brand.The haul-off has many different kinds of Model,such as two-claw, three-claw, four-claw, five-claw, six-claw.About the cutter, you can choose the saw blade cutting type or the planet cutting type.We also can offer some auxiliary machine about the pipe extrusion line.
4. Equipped with different die heads and auxiliary machines ,it can produce U-PVC pipes for single or core foaming,inner spiral foaming,hollow or hollow inner spiral.

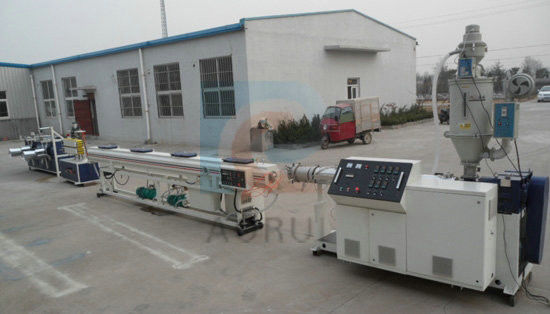

5. The production line consists:
a.Conic Double Screw Extruder
b.PVC Die Head

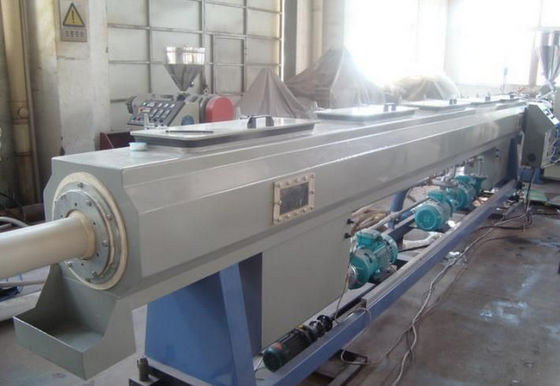

c.Vacuum calibrating cooling Stand
d.Spray Cooling Flume
e.Pulling Machine
f.Cutting Machine
g.Stacker
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Applications:
1. Water supply, drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
our advantages:
1. good after-service
2. stable capcity and high output
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
5. we can send our engneers to customer's factory to install the machine and train the worker , until the local worker can operate the machine and maintenance the machine.
6. ISO9001& CE certificate
