Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ90/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PE Plastic Extrusion Line , PE Cool And Hot Water Pipe Production Machinery

Description
Condition: New Screw Design: Single Screw
Brand Name: AORUI Voltage: 380V50HZ
Color: Bule Or Others On Request Automatic Grade: Fully Automatic
Keyword: Pe Pipe Manufacture Velocity: 15m/min
High Light:

plastic pipe extruder machine

,

plastic pipe extrusion machine

PE Plastic Extrusion Line , PE Cool And Hot Water Pipe Production Machinery



Quick detail



1. High extruding velocity and high palsticization,Manufacture velocity up to 15m/min,Producing pipe limit 20-160mm.



2. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization.

Separation mixing screw specialized for polyolefin.

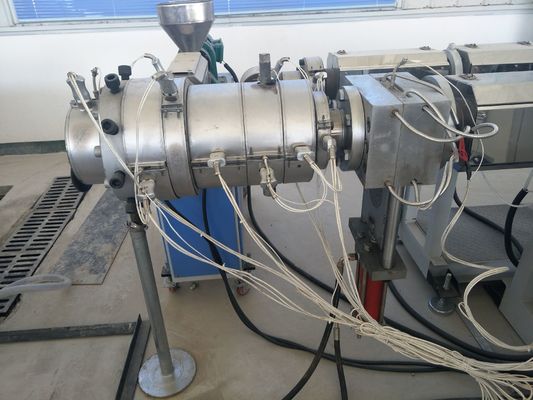

3. Specialiiy designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min.



4. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX , and PE-RT pipes.







Description:



1.Product Application of hdpe pe water pipe making machine:

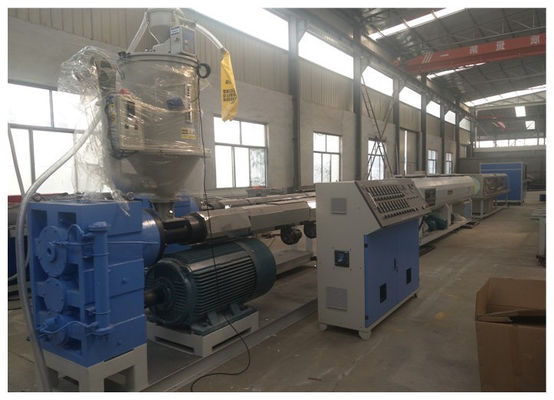

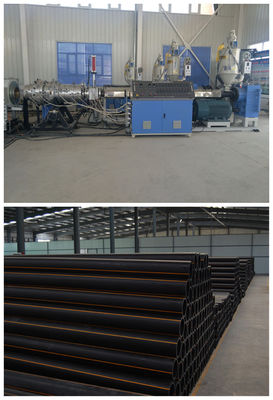

 Vacuum feeding---Hopper dryer---Single screw extruder--- Color string extruder---Co-extrusion mould
---Calibrator---Spray vacuum calibration tank---Spray cooling water tank---Haul-off machine---No dust cutter---Pipe Stacker for package.



2. PE pipe extrusion line is mainly used for producting plastic pipe for agriculture water supply & sewage, for building industries water supply & sewage, for cable and wire laying.



3. PE pipe machine is mainly used to manufacturing PE plastic pipe, and GF series tube auxiliary equipments can also use to process oher plastic Extruder and GF series tube auxiliary equipments take the features of advanced, reliable & applied together, and provide strong certification for high-quality tube for customers.



4. This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.









Main Technical Parameter

Extruder SJ65-30B SJ-90/30B SJ-120/30B SJ-150/30B
  SJ-30/25B SJ-45/30B
  SJ-25/25B SJ-25/25B SJ-25/25B SJ-25/25B
Pipe Dia(mm) 20-63 20-160 110-400 315-630
Water Sizing Trough SGZL-75 SGZL-160 SGZL-400 SGZL-630
Water Cooling Trough SGPL-75 SGPL-160 SGPL-400 SGPL-630
Haul off Machine SLQ-75B SJQ-160B SLQ-400B SLQ-630B
Cutting Machine STG-75 STG-160 STG-400 STG-630
Stacker FZ-6000 FZ-6000 FZ-6000 FZ-6000






Our Advantages:

1. Fast delivery : around 30 days after receiving advanced payment

2. Quality Assured: Strictly acc. To International standard ASTM & BS & EN & JIS, with System ISO certification

3. Good pre-sales and after-sales service
