Product Details:
|
| Brand Name: | AORUI | Model Number: | SJ |
|---|---|---|---|
| Condition: | New | Processing Type: | Extrusion |
| Automatic Grade: | Fully Automatic | After-sales Provided: | Engineers Availiable To Serive |
| High Light: | Plastic Extruding Machine,Plastic Extruder Machine |
||

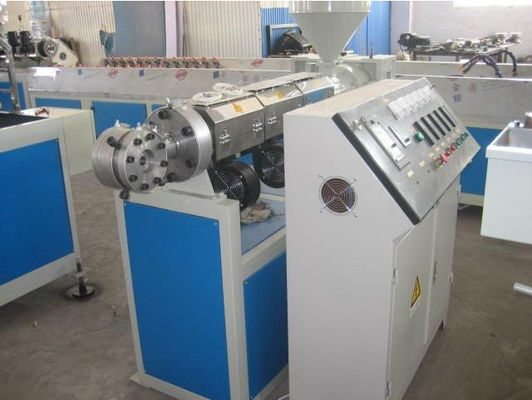

High Quality PVC Plastic Pipe Extrusion Line , pvc Fiber Reinforced Soft Pipe Production Line
Quick detail
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High efficiency singel screw extruder

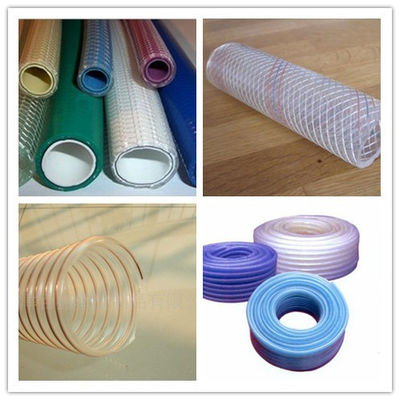

4) It can produce PVC garden hose or pvc soft hose
5) The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
6) This pvc hose is mostly used as home, garden,farm, lawn and so on.
Sepecification:
1. This line is the newly-developed product of our company, which is mainly used to produce PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc. So the final products of this line are widely used in conveying pipes for water.
This line consists of extruders, spraying water tanks, hauling-off units, Coiler, etc. And it features with reasonable configuration, special structure, easy operation, convenient maintenance, high continual production capacity, etc, so it gets warm welcome and trust from clients.
2. The PVC Fiber Reinforced Pipe Extruder , also called gridding pipe and snackeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid . it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application , also it can be used in irrigating garden and lawn.

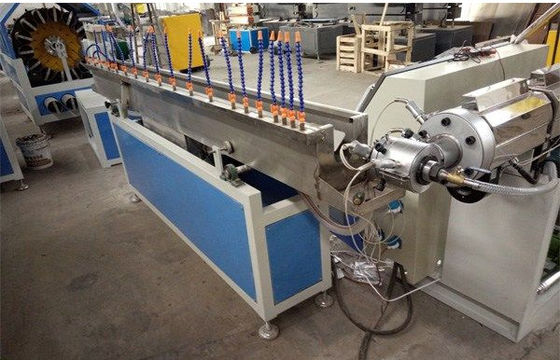

3. Spray cooling equipment: 1, PVC drainage pipe equipment center height is adjustable; 2, PVC drain tank length can be effective and efficient cooling equipment . Traction device: 1, accurate pressure control system can adjust the traction; 2, pipe quality can have a very good stand up to a larger degree of the corrosion performance of rubber block guaranteed. Cutting machine 1, according to the size of the concrete pipe to adjust; 2, can greatly to absorb noise.
Technical parameters:
| Model | LGSJ65 | LGSJ45/30 |
| Extruder | SJ65/28 | SJ45/30 |
| Diameter Range(mm) | Φ12-Φ50 | Φ6-Φ14 |
| Output | 40-75 | 20-40 |
| Installed Power(KW) | 50 | 35 |
Our AdvantageS:
Have many years experience
good pre-sales and after-sales service
easy operate high output
