Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line

Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line
Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line

Large Image :  Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line

Description
Automatic Grade: Fully Automatic Voltage: 380V50HZ
Dimension: According To Model Condition: New
Screw Design: Single Screw Place Of Origin: Shandong , China
High Light:

Plastic Extrusion Equipment

,

Plastic Extruder Machine

pvc Plastic Pipe Extrusion Line , pvc Fiber Reinforced Soft Pipes Production Line



Quick detail

working flow

Main extruder-Die-Braider-Cooling Bath-Dry tank-Haul off-Winder-Ink Printer-Electric Cabinet



Application:

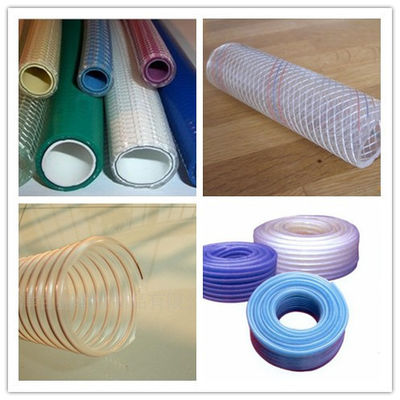

This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building



Sepecification:


1. The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and iliquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application , also it can be used in irrigating garden and lawn.



2. Equipment list of this pvc fiber reinforced production line:

A. Double Screw extruder

B. Mould

C. Vacuum sizing cooling water tank

D. Spray cooling water tank

E. Haul off machine

F. Cutting machine

G. Winder



3. Process:

conveying feeding→single screw extruder→extruding mould→spray cooling water tank→belt haul-off→fibre winder→warm up oven→

single screw extruder→mould→spray cooling water tank→belt haul-off →meter measure→winder→finished product inspecting&packing



4.U - PVC wire threading pipe extrusion line with conical twin screw extruder as host form a complete set of different pipe mould and the corresponding auxiliary engine of the nose, the machine has reasonable structure, stable and reliable performance, implementation of the main motor, traction motor synchronous speed. And by adopting the method of vacuum sizing, sizing effect is good, high degree of automation, and set a good man-machine interface.



5. This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.



6. High efficiency singel screw extruder.  It can produce PVC garden hose or pvc soft hose. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm . This pvc hose is mostly used as home, garden,farm, lawn and so on.



Technical parameters:

Model LGSJ65 LGSJ45/30
Extruder SJ65/28 SJ45/30
Diameter Range(mm) Φ12-Φ50 Φ6-Φ14
Output 40-75 20-40
Installed Power(KW) 50 35



Our Advantages:

Have many years experience

good pre-sales and after-sales service

easy operate high output



Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line 0

Plastic Pipe Extrusion Line Double Screw PVC Fiber Reinforced Soft Pipes Production Line 1
