Product Details:
|
| Certification: | BV CE ISO9001 | Plastic Processed: | PP Pe |
|---|---|---|---|
| Screw Design: | Single Screw | Type: | Plastic Extrusion Machine |
| Application: | Pipe | Place Of Origin: | Shandong , China |
| High Light: | plastic extruder machine,plastic production line |
||

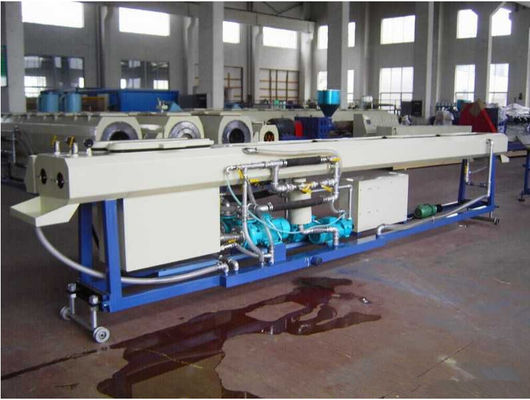

PE Plastic Extrusion Line , Pe Twin Pipe Extrusion Production Line For Agriculture Pipe
Quick detail:
Power supply : 380V50HZ
Ceterfication: CE UL SCA
Power: 11-125KW
Screw design:single screw
Machine type: pipe production line
Weight: 8T
Capacity: 300kg/h
Diameter of pipe:20-110mm,75-200mm,110-315mm,315-630mm
Control system: PLC
Motor: Siemens
Port :QingDao
Description:
1. HYPET high efficient PVC pipe extrusion production line is very popular and widely used in producing all kinds of pvc pipes, such as electric donduit pipe, drainage pipe, algriculture pipe, construction pipe, chemical pipes and so on. It is also suitable to product other pipes, such as PP,PE,UPVC and so on.
hdpe pipe extrusion production line.
2. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm.Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.
3. The production line is consist of follows parts: A. Single screw extruder B. Mould C. Vacuum sizing water tank D. Spray water cooling tank E. Hauling off machine F . Cutting machine
4. The production line is low consumption and low noise , it has stable output and easy to operate . As the granule material, such as, PE, PP, PPR, etc. they would need single screw extruder. other downstream equipment, are similar with pvc pipe production line as above.
Applications:
PVC PE PP PPR Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
Main Technical Parameters
|
Extruder Model |
SJ-51X105 | SJ-65X132 |
| Accessory Machine | GFSP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12m/min | 12m/min |
| Max output | 160kg/h |
220kg/h |
our advanteges:
1.Good after-sales service , we can ibvited customer to visit our factory to see the machine and test the machine , after the machine arrive to client's factory , if client need , our engineers can go to their factory to install the machine , and train the local workers.
2. Our PP twin pipe extrusin machine is easy operation , stable output , high capacity and low consumption.
3. We have more than 15 years in this field. we can provided technical assitance.
