Plastic PP Twin Pipe Extrusion Production Line For Agriculture Pipe

PP Plastic Pipe Extrusion Line , PP Twin Pipe Extrusion Production Line For Agriculture Pipe

Quick detail:

1. Easy to operate , High output , Good quality

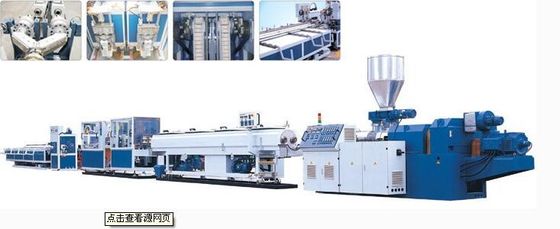

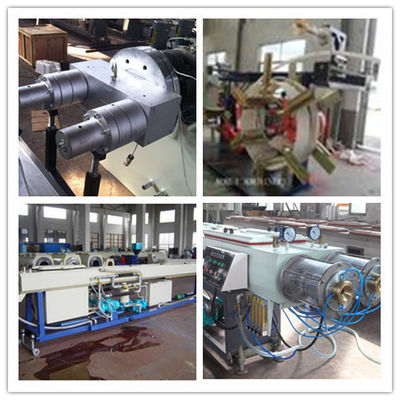

2. The machine list of PP Twin Pipe Extrusion Production Line:

    a. single screw extruder  b. moulds  c. vacuum water sizing tank

    d. spary cooling water tank  e. haul off machine f. cutting machine

3. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device.

4. The screw diameter id 65mm , and the motor power is 37kw.

Description:

1. It adopt special gear box,and has features of low noisy ,stable running ,high carrying capacity,long service life .Equipped with different mold and auxiliary equipments,it could produce plastic pipe ,sheet ,board, granules and so on .It has features of simple process,high output ,stable extrusion pressure,and low cost.

2. Single screw extruder: the siameter is 65 mm or according to customers requirement. the screw barrel   material is 38CrMoAIA permeability nitrogen treatment.

3. Mould: Mold specification: Φ9,Φ10,Φ12,Φ15,Φ20,Φ25,Φ32,Φ40,Φ50,Φ63,Φ75,Φ90

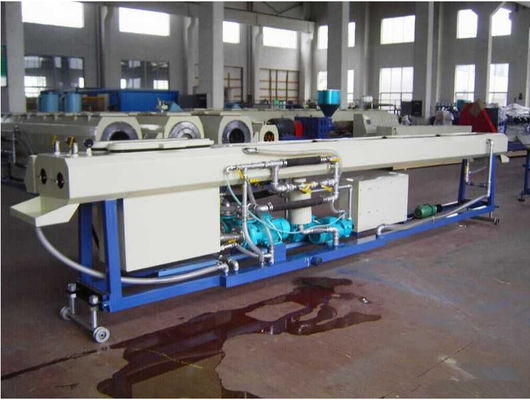

4. Vacuum water cooling tank : Vacuum Pump power is 4kw. Vacuum tank length and diameter: 6000mm Φ400mm. Water Pump power is 1.5kw and 3kw. Max. vacuum degree:0.06Mpa

5. Spray cooling water tank: Effective length: 6000mm. Cabinet 1Cr18Ni9Ti stainless steel.

6. Hauling off machine: the power is 3kw , cutting machine , the power is 1.5kw.

7. For compounding of all kinds of fiber-glassed fire-resistant engineering plastic, special master-batch of anti-virus season-proof insulation deposition for special application. Rubber-plastic compounding, Dyeing of plastic. Material-processing for deposited film. Multi-function anti-fog film. Special material for auto car. Special materials for house-electric. Material of cable of telecom and power. TPR warm-plastic. The compounding of PVC air-proof warm-plastic adhesive-plaster for alteration.

8. It is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application, also it can be used in irrigating garden and lawn.

Applications:

Fiber Reinforcement:glass fiber, carbon fiber reinforced PP. PA, PBT. ABS. AS, PC, POM, PPS,PET. etc.

This pipe used to convey the middle pressure or corrosive gas and iquid .

Main Technical Parameters
