Product Details:
|
| Certification: | CE ISO9001 | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Dimension(L*W*H): | According To Model Of Machine |
| Voltage: | According To Customers Requirement | Plastic Processed: | PVC |
| Processing Type: | Extruding Machine | Motor: | Siemens |
| High Light: | plastic sheet extrusion machine,plastic sheet extruder machine |
||

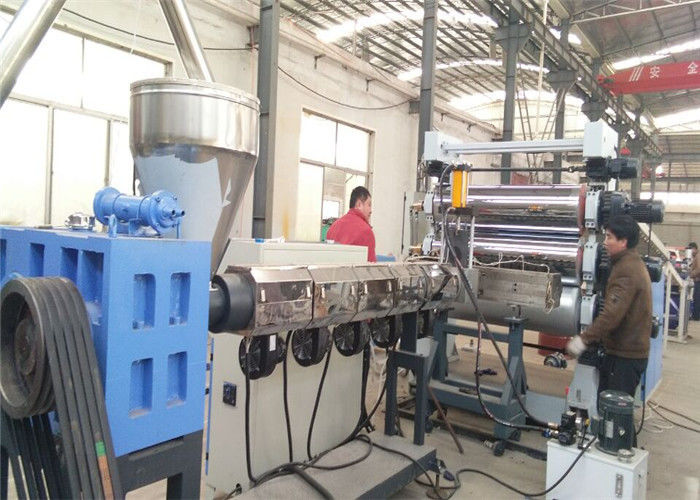

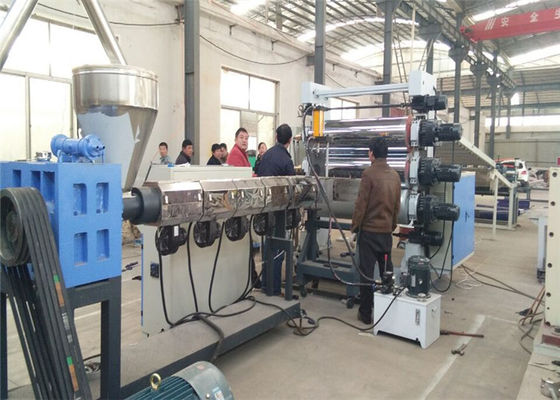

PVC Plastic Sheet Extrusion Line , 1-30mm Double Screw PVC Free Fomaed Sheet Production Line
QUICK DETAIL :
PVC sheet production line
1. Good quality and competitive
2. Durable in use
3. Easy operate
4. CE ISO9011
Description:
FEATURES OF PRODUCTS:

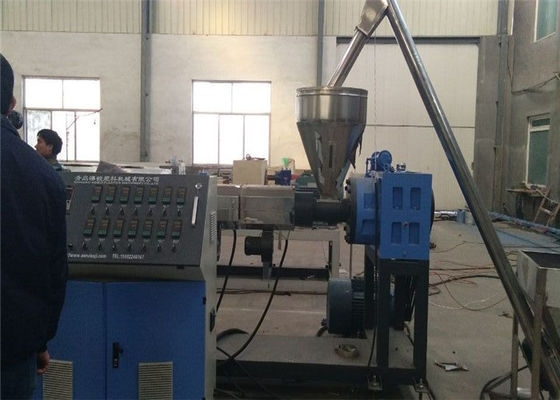

1. Conical twin-screw extruder, suitable for processing PVC powder raw materials after mixing and compounding.
2. Changing the moulds and Foil to produce many kinds of different PVC marble profiles.
TECHNICAL DATA:
1. Power supply: 380V/3-phase 50 Hz
2. Material: PVC resin (special screw & barrel; die spared for recycled PVC construction panel)
3. Capacity: 250-300kg/h
4. Production specification: 1220*2440mm
Specifications:
| 1 | High speed mixer | ONE SET |
| 2 | SJSZ80/156 Conical twin screw extruder | ONE SET |
| 3 | Mould | ONE SET |

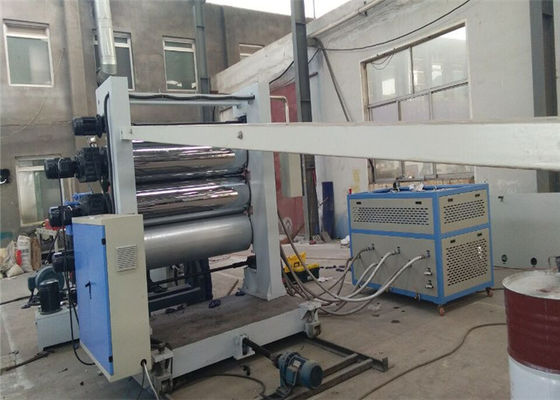

| 4 | Three calender(online laminating) | ONE SET |
| 5 | Cooling bracket | ONE SET |
| 6 | Hauling machine | ONE SET |
| 7 | Cutting machine | ONE SET |
| 8 | Stacker | ONE SET |
Why choose us:
1 . long working time
2 . energy saving
3 . good plasticity
