Product Details:
|
| Brand Name: | AORUI | Screw Design: | Double Screw |
|---|---|---|---|
| Color: | White , Black , Yellow , Blue | Plastic Processed: | PVC |
| Capacity: | 70-100kg/h | Voltage: | 380V 50HZ |
| Place Of Origin: | Shandong , China (Mainland) | Dimension: | According To Model |
| High Light: | two screw extruder,twin screw extrusion machine |
||

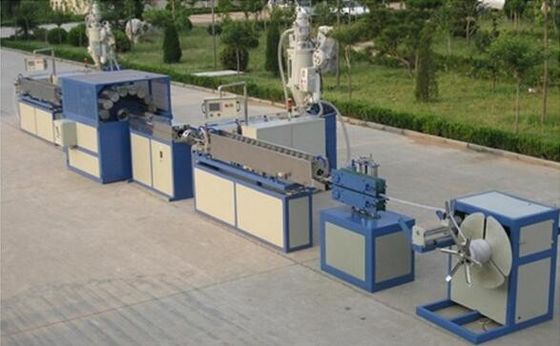

PVC Plastic Pipe Extrusion Line , PVC Fiber Reinforcing Hose Production Line For Irrigation
Quick detail
The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application (solar energy water heater , gas-jar) , also it can be used in irrigating garden and lawn.
Description:

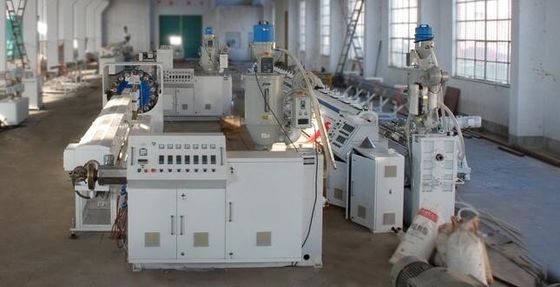

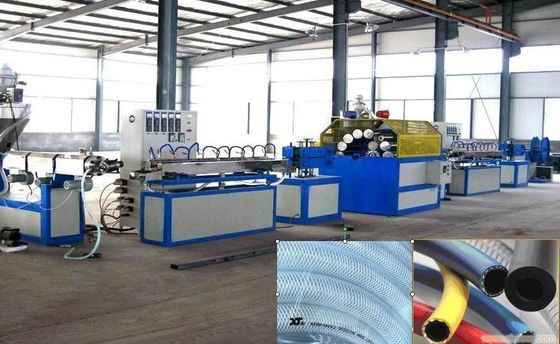

1.This line consists of extruders, spraying water tanks, hauling-off units, Fiber braiding machine,Coiler, etc. And it features with reasonable configuration, special structure, easy operation, convenient maintenance, high continual production capacity, etc, so it gets warm welcome and trust from clients.
2. Equipment list:
Feeding system two sets
SJ-45/28 single screw extruder two sets
Electric control system two sets
Extrusion mould and coating mould two sets
Cooling water tank two sets
Belt haul-off machine two sets
Fiber braiding machine one set
Double-position winder one set
Oven one set
3. The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid.
Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters).
At the present time, it is widely used to the irrigation pipe to the garden and lawn.
4. Process
conveying feeding→single screw extruder→extruding mould→spray cooling water tank→belt haul-off→fibre winder→warm up oven→
single screw extruder→mould→spray cooling water tank→belt haul-off →meter measure→winder→finished product inspecting&packing
Main Technical Parameters:
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.Output | 160(kg/h) | 220(kg/h) |
Application:
1. This line is the newly-developed product of our company, which is mainly used to produce PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc. So the final products of this line are widely used in conveying pipes for water.
2. This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.
Our advantage:
1. Good pre-sales service and sfter-sales service
2. Have more than 15 years experience
3. High quality and resonable price
4. We can invited customers to visit our factory and test the machine , when enquipment arrive to custoemr's factory , if clients need , we can send our engineers to client's factory to install the machine and train the local worker to operate the machine.
5. Fast delivery , about 30 days after receive the payment.
