Product Details:
|
| Brand Name: | AORUI | Plastic Processed: | PVC |
|---|---|---|---|
| Production Capacity: | 120-800 Kg/h | Application: | Water Pipe |
| Screw&Barrel: | 38CrMOAIA | Screw Design: | Double Screw |
| Place Of Origin: | Shandong , China(Mainland) | Type: | Pipe Production Line |
| High Light: | Plastic Extruding Machine,Plastic Extrusion Equipment |
||
High Output PVC Plastic Extrusion Line , Double Srew PVC Tiwn Pipe Extrusion Production Line
Quick detail

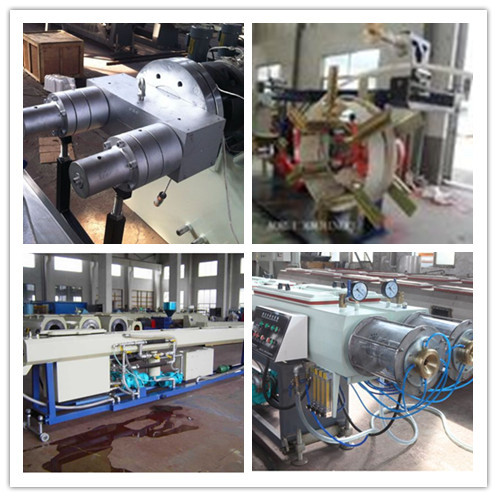

1.PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
2. First class pipe die was designed with many years experience.
3. Perfect twin pipe vacuum sizing systerm.
4. Controlled independently umitary structurer twin pipe hauling mechanism and synchronous cutting device.
5. Optional length set and accurate adaption stacker.
Description:
1. PVC twin pipe extrusion plant is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable layietc. Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity, max 600KG/H
2. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker
3. Conical Twin Screw Extruder machine is applicant for PVC powder material, with different mould and downstream equipment; It can produce pipe, profile, plate&sheet, and pelletizing. The extruder features in good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time. Electrical control system: Siemens PLC/PCC auto control system or RKC temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system
4. SJSZ series conical twin screw stem extruder is composed of barrel screw, gear transmission system, measurable feeding, vacuum deareating, heating, cooling and electric control components ect.
it is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film , profiles, and granules, ect.
5. The PVC twin pipe production line main features: a.Frequency conversion timing b. Hardtooth gearbox
c. Material of the screw and barrel is 38CrMoAlA, nitrogen treatment, screw is designed especially for rigid
Main Technical Parameters:
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.Output | 160(kg/h) | 220(kg/h) |
Our advantage:
1. All of our pipe extrusion machine will be tested before delivery
2. Engineers availiable to service to abroad to install the machine , help local workers to opearte and maintain the machine.
3. Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.
4. CE & ISO9001 certificate
