Product Details:
|
| Brand Name: | AORUI | Certification: | CE ISO9001 |
|---|---|---|---|
| Screw Design: | Double Screw | Place Of Origin: | Shandong, China (Mainland) |
| Deimension: | According To Model | Automatic Grade: | Fully Automatic |
| Application: | Profile | After Sales Service: | Engineers Availiable To Service Manchinery Overseas |
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||
PET Strapping Band Machine ,Double Screw PET Drawbench Production Line
Quick detail:
1. PET Packing Belt , Drawbench Production Line
2. pet strapping belt is good quality and high temperature - resistant
3. Fast delivery time and CE ISO9001 certificate
4. Single screw or double screw technique for qotion depending on the requirement.
5. Even plasticzation and stable extrusion with PC automatic control foe the full line.
Description of PET Strap Band Machine:
1.Extruder: equipped with automatic loading& drying machine
2.Die head and mould: It adopts high quality mould steel which features high speed production, even extruding, low pressure on the die head, high precision, long life span, etc. One mould can produce two pieces, high efficiency
3.Cooling water tank: Stainless steel cooling water tank controls the crystallization degree to the plastic, and guarantees the extension ratio of belt blank.
4.First haul off machine: It is used for the first hauling after extruding and cooling. It consists of electrical motor, speed reducer, hauling roller, etc
5.Thermal: It is used for heating of raw band, and realizes the second hot extension Second haul off machine: Consisted by the second hauling tension, electrical motor and the traction roller, etc
6.Second haul off machine: Consisted by the second hauling tension, electrical motor and the traction roller, etc
7.Embossing machine: The raw band reaches primary shaping and accepts embossment on its surface, which improves the transverse orientation intensity and surface friction.
8.Calibrating device: Used to the further fixed cooling to prevent it from distortion of the production.
9.Third haul off machine: The after forming traction is consisted by the second hauling, tension, electrical motor and the traction roller, etc
10.Winding machine: Can be used to the coiling of the production ,and the center coiling type is automatic .And it is consisted by the coiling roller, coiling core and the stander, the coiling roller is consisted of electrical motor, reducer and the transmission system
The Main Technique Parameter
| Range of band width | 6-32mm |
| Speed of production | 120m/minx2 |
| Stretch ratio | 4-6 |
| Max . Output | 200kg/h |
Our advantages
1.PET has characteristic of good quality, high temperature-resistant,special gravity is only 1/5 as
steel belt. It is suitable for different kinds of enterprise for packing.
2. PET packing belt, drawbentch production line. 100% recycled flakes can be used for production, even plasticzation and stable extrusion with Pc automatic control for the full line
3. It is perfect substitute of steel belt,used in packing paper, wood work, textile, cotton, fiber, and pallet. This product is easy for use and connected by normal steel button. It is also suitable for manual, table packing machine and automatic packing machine.

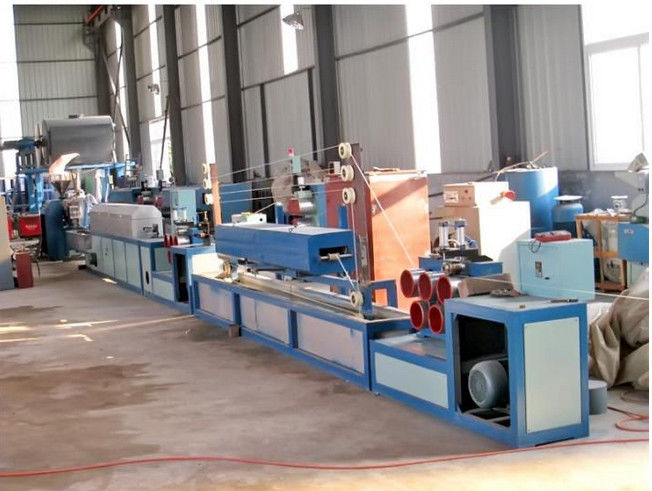

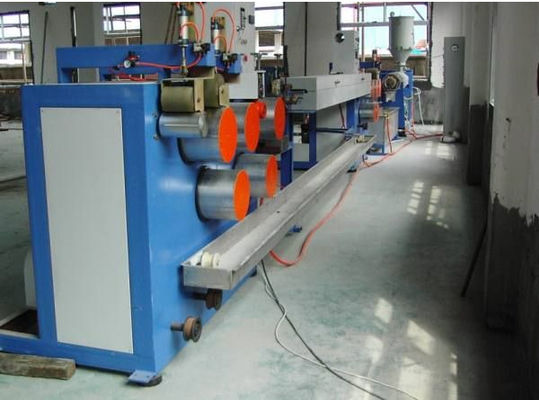

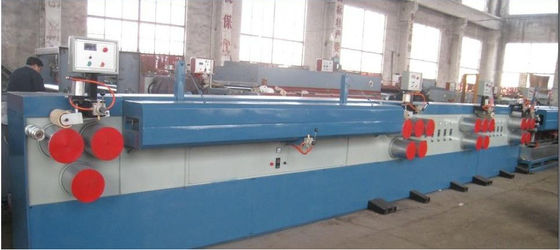

Machine display:
