PP Automatic Strapping Machine Strap Making Machine Single Screw

PP Strapping Band Machine , PC Automatic Control PP Packing Strap Making Machine

Quick detail:

1. 100% recycled flakes can be used for production

2. Stable extrusion with PC automatic control for full the line

3. Single screw or twin screw technique for option

Description:

1. Single screw or twin screw technique for option depending on the requirement. The dosing pump ensures continuous and stable production.

3. The filter of double columns with four working positions can get rid of impurity effectively.Single strap or double strap for option

4. Our strap band production line is of the most advanced technology in thid field , The straps can be used for packing in various areas .

5. It has such characturers: high tensile srength , small percentage elogation , resistance to impact , not easy to be broken and good softness.

6. With the multi-purpose machine, it can produce PET straps in different specifications
directly and doesn"t need to change the mould head  The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger .

7. The raw material treatment is by our CSG serious dehumidify and dryness system , The screw is specially designed for PET application, it consists of separate and mixing part to keep the even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good dimension of PET strap.

8  The PET Packing Belt , Drawbench Production Line is fully automatic , and long service life , stable operation.

9. Extrusion capacity: 50kgs/h or 80kgs/h or 120kgs/h . Straps specification: 5-19mm Width,0.4-1.2mm Thickness. .Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.

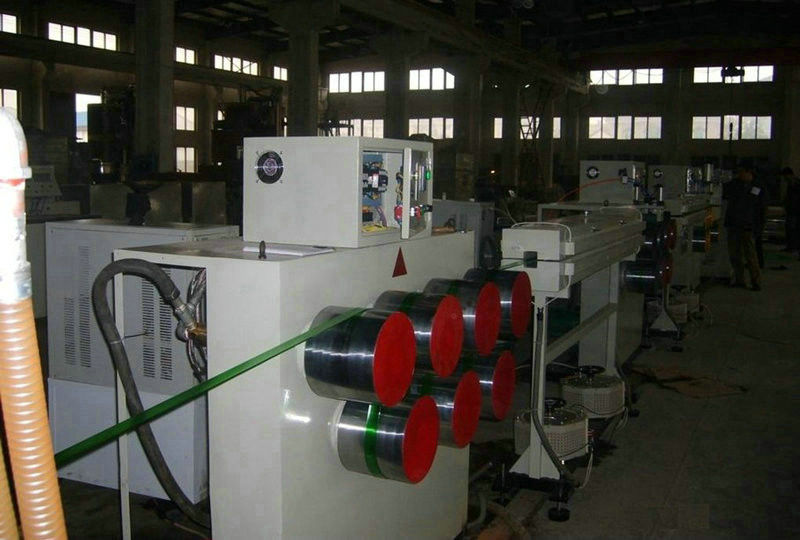

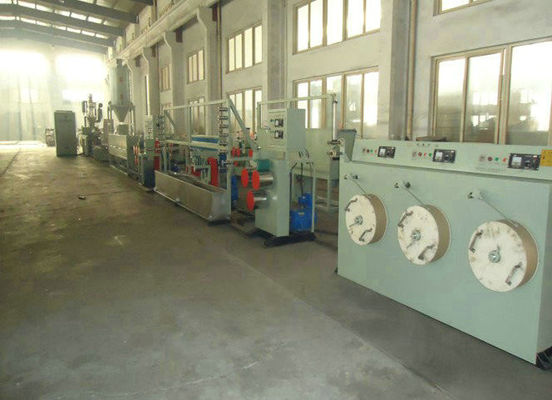

10. This production line is consist of automatic loader, dyer, extruder, filter, mould ,water tank, haul-off machine, heating box, tensile unit ,heat forming machine and winder machine. One strap extrusion and double strap extrusion are available

The Main Technique Parameter

Application:

 PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

Our advantages

1 High quality equipment and highly competitive market price

2. More than 15 years experience

3. CE ISO9001 certificate

4. We have good pre-sales and after-sales service, our engineers can go to abord to installed the machine and trainning the workers.
