Product Details:
|
| Material: | PE/PP/PS | Pipe Diameter: | 16mm-1000mm |
|---|---|---|---|
| Voltage: | 380V | Automatic Grade: | Fully Automatic |
| Condition: | New | Application: | Pipe |
| Place Of Original: | Shandong , China(Mainland) | After-sales Service: | Engineers Availiable To Service |
| High Light: | WPC Extrusion Line,Plastic Recycling Machine |
||
HDPE Plastic Pipe Extrusion Line , 16mm-1000mm Single Screw Pipe Extrusion Machine
Quick Detail:
1. HDPE Plastic Pipe Extrusion Machinery
2. Single Screw Extruder Pipe Extrusion Machine
3. Water Supplying and Transportation Pipe Extrusion Machine
4. CE&ISO9001 Certificate
Description :
1. The process of produce HDPE pipe :

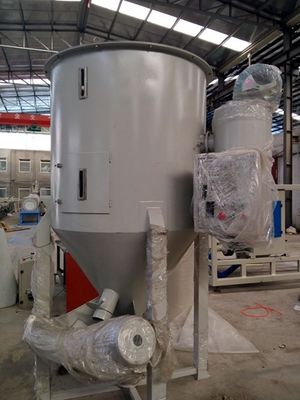

Feeding + Extruder + Mould + Vacuum Sizing Water Tank + Cooling Water Tank + Haul Off Machine + Cut Off Machine + Stacker

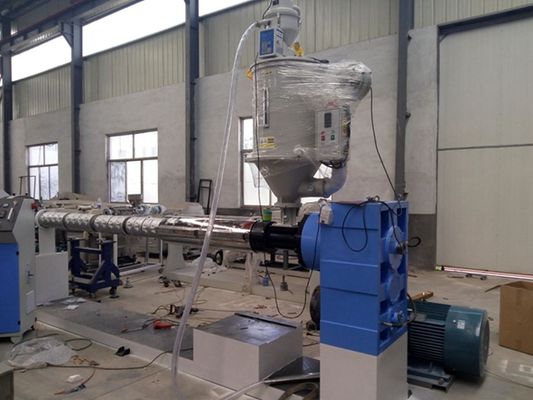

2. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization.
HDPE pipe extrusion machine is primarily used in the manufacturing of HDPE pipes with diameters ranging from 16mm to 1000mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation.

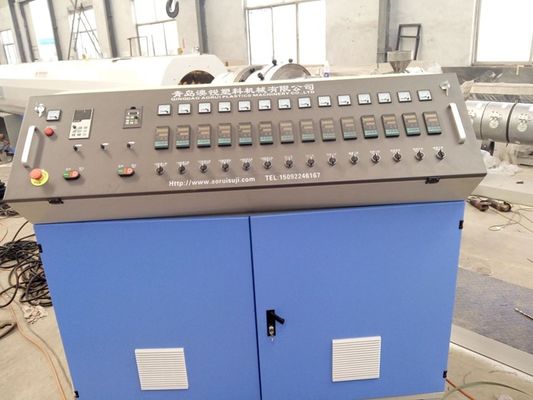

3. Seperation mixing screw specialized for polyolefin. Manufacture velocity up to 15m/min.Accurate temperature control system ensures materials melting performance .Advanced PLC operation system realizes synchronization and automation .
4. Diameter: our company succeed in designing and producing the conical single extruder. Max production diameter reach 1000mm.

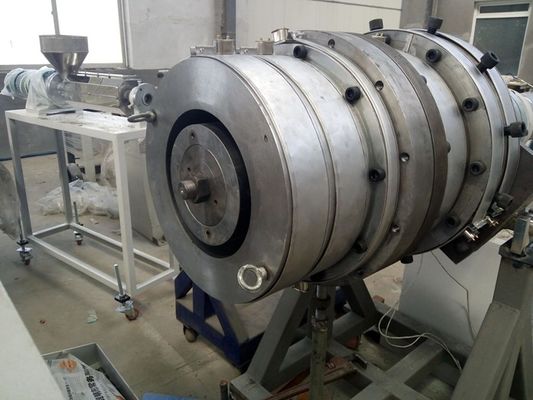

5. Specially designed 2-3 co-extruding die , resonable channel , smooth outside and inside wall , and little internal stress.
6. Nice appearance, automatic control and stable running performance.Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.
The whole line can be controlled automaticlly.
7. May be used to produce HDPE silicon core tube , ordinary PP-R,PE,PEX and PE-RT pipes.
Main Technical Parameters:
| Extruder | SJ-65/30B | SJ-90/30B | SJ-120/30B | SJ-150/30B |
| SJ-30/25B | SJ-45/30B | |||
| SJ-25/25B | SJ-25/25B | SJ-30/25B | SJ-30/25B | |
| Pipe Dia(mm) | 20-63 | 20-160 | 110-400 | 315-630 |
| Water Sizing Trough | SGZL-75 | SGZL-160 | SGZL-400 | SGZL-630 |
| Water Cooling Trogh | SGPL-75 | SGPL-160 | SGPL-400 | SGPL-630 |
| Haul Off Machine | SLQ-75B | SLQ-160B | SLQ-400B | SLQ-630 |
| Cutting Machine | STG-75 | STG-160 | STG-400 | STG-630 |
| Stacker | FZ-6000 | FZ-6000 | FZ-6000 |
FZ-6000 |
Application:
1. Urban water supply or gas transportation.
2. Mainly used to produce PE water pipe.
3. Highway and railway drainage, Agricultural irrigation etc.
Our Company Competitive Advantages:
1. Our engineers can go to abroad to installation the machine and teach the workers.
2. More than 15 years experiences , and we can provide long term technique assitance.
3. High quality , resonable price , long service life.
4. Easy to operate and high output
5.We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
