Product Details:
|
| Place Of Origin: | Shandong , China | Brand Name: | AORUI |
|---|---|---|---|
| Model Number: | SJSZ65/132 | Material: | PVC |
| Screw Design: | Double Screw | Condition: | New |
| Automatic Grade: | Fully Automatic | Dimension: | According To Model |
| High Light: | double screw extruder,two screw extruder |
||

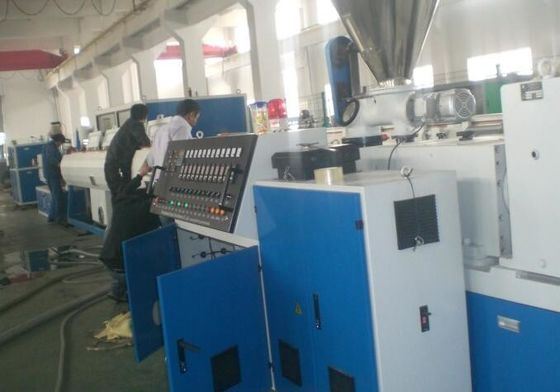

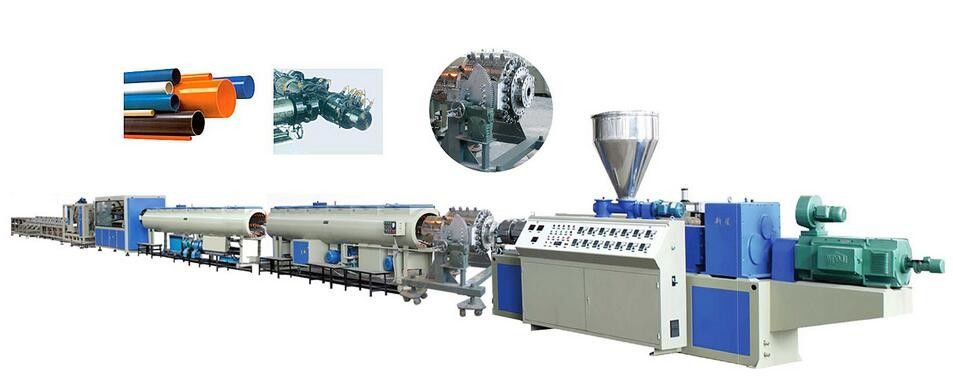

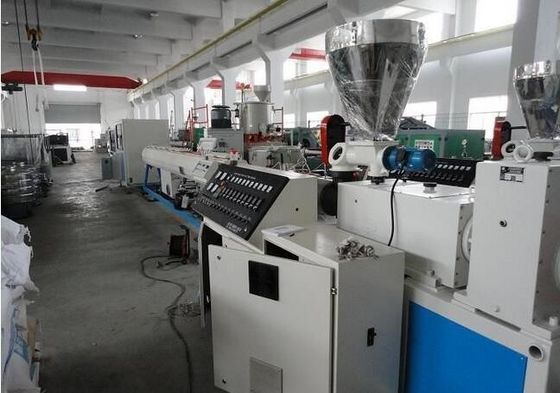

PVC Plastic Pipe Extrusion Line , Fully Automatic Double Screw pvc water Pipe Extrusion Machine
Quick detail
1. The process : Feeding machine+Extruder+ Mould + vacuum sizing water tank + Spray water tank+Haul off machine+ Cutter + Stacker
2. GPM series PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes.
3. Excellent in chemical corrosion, no rust; With self extinguishing and flame retardant;
Description:
1. This machine group consists mainly of twin conical (parallel) screws extrder , vacuum calibrating tank , tractor , haul-off unit , cutting unit ,tilter , etc. Single screw extruder and haul-off unit have applied imported A/C inverter , both vacuum pump and driving motor have applied excellent products
2. Controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling. OMRON temperature controller, SIEMENS contactor, ABB inverter, SIEMENS AC/DC motor
3. pvc pipe machine/PVC pipe making machine /pvc pipe production line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

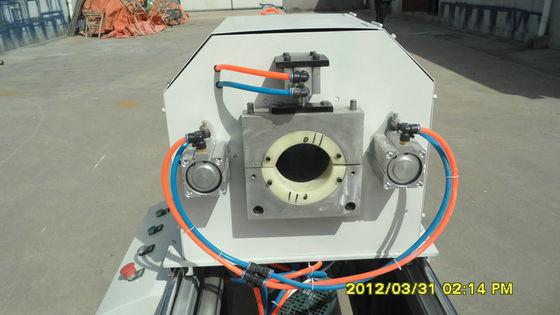

4. The haul-off unit includes: two-claw type, three-claw type, four-claw type, six clau type, eight-claw type, ten-claw type, twelve-claw type etc. No scraps cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high.
5. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, amd core layer foam pipeject. it can also produce PP,PE,ABS,PPR,PEX, silicon core pipe and pipe computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.
Our competetive advantages:
1. good pre-sales and after-sales service
2. our engineers can go to aborad to installment the machine and train the local workers until they can operate the machine and maintain the machine.
3. easy to operate and high output
