Product Details:
|
| Condition: | New | Type: | PPR Pipe Extruder |
|---|---|---|---|
| Screw Design: | Single Screw | Feature: | High Speed And Capacity |
| Product Pipe: | Hot And Cold Water Pipe | Pipe Range: | According To Customer |
| Material: | PE / PPR | Voltage: | 380v |
| High Light: | Plastic Extruding Machine,Plastic Extruder Machine |
||
PPR Hot / Cold Water Pipe Plastic Extrusion Machine 16 - 200mm Pipe
Quick detail:
1. PPR pipe extrusion line can be used to produce three-layer PP-R pipe, in the middle, it is fibre glass or Aluminum , PPR pipe extrusion line can be used to produce PE-RT pipes , application:Hot and cold water pipe

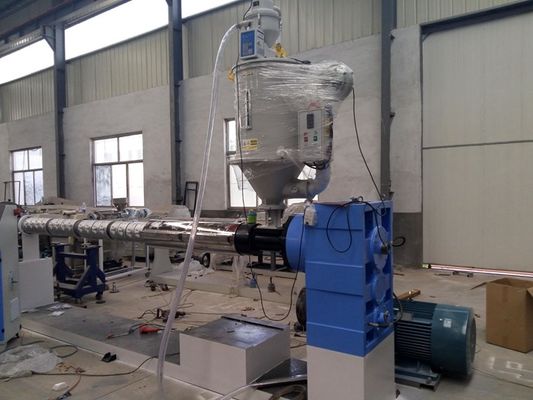

2. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticzation.Separation mixing screw specialized for polyefin.

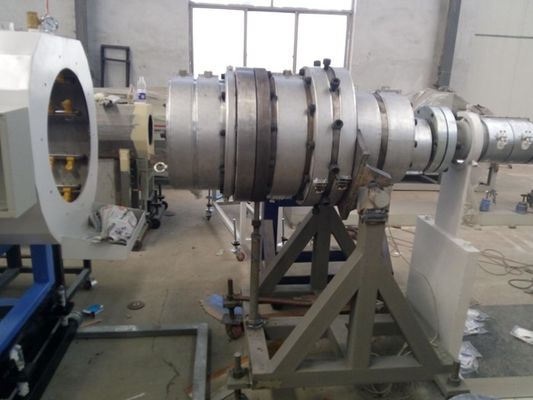

3. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.
4. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.
Description:
PPR Pipe Extrusion Machine/ppr pipe extusion line is mainly used to produce pipe material whose raw material is mainly PP-R resin. It is also suitable for producing pipe materials of PP, PPB, PPC, and PEresin.

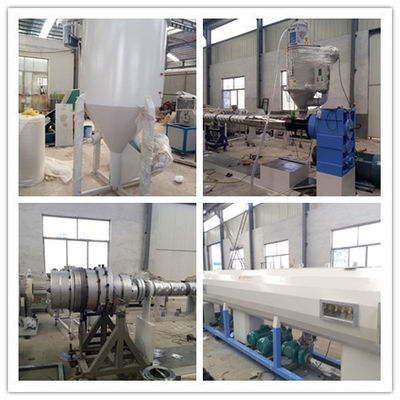

Raw material+master batches →mixing → vacuum feeding→material dryness → single screw extruder → color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting&packing
1. Diameter: 16~160mm
2. Pipe material:PPR
3. Line length: 30m~38m
it can also be equipped with length-measuring and thickness increasing instruments . this line is characterized of reliable performance and high production efficiency . anti-noise spiral pipe and foam core pipe production lines are also available according to customers requirement.
Applications:
1. building hot and colde water system, including central heating system;
2. building heating system, including floor,wall and radiant heating system;
3. can be directly used in purfied water drinking water supply system.
4. Central air condition system'
5. Adopts co-extrusion die head and adds marking line for pipes
Specifications
|
Model/Spec. |
Diameter range (mm) |
Extruder model |
Line speed (m/min) |
Max. Capacity (kg/h) |
Installed power (KW) |
|
LPSG110 |
50-110 |
LSJ65/30 |
0.5-2m/min |
100 |
50 |
|
LPSG200 |
75-200 |
LSJ90/30 |
0.5-2 m/min |
140 |
80 |
Competitive Advantage:
1. Super quality and competitive price
2. With a variety of models
