CE 380v 50hz Cool and Hot Water Pe Pipe Extrusion Line High output

Certification
Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

CE 380v 50hz Cool and Hot Water Pe Pipe Extrusion Line High output

China CE 380v 50hz Cool and Hot Water Pe Pipe Extrusion Line High output supplier

Large Image :  CE 380v 50hz Cool and Hot Water Pe Pipe Extrusion Line High output

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ90/33

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 30 sets per quarter
Detailed Product Description
Condition: New Material: PE
Brand Name: AORUI Screw Design: Single Screw
Place Of Origin: Shandong , China Voltage: 380v50hz
Certificate: CE&ISO9001 Application: Pipe

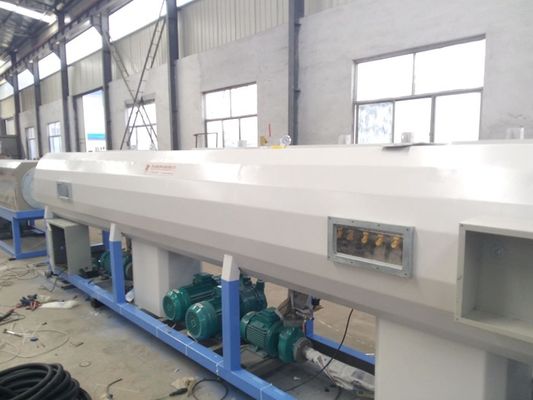

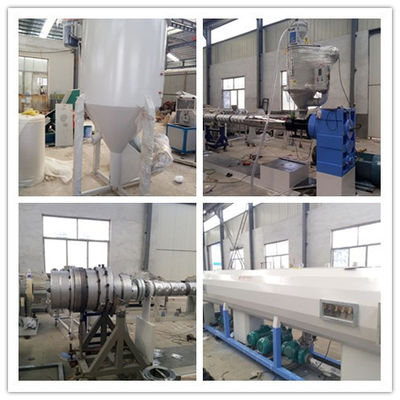

CE 380v 50hz Cool and Hot Water Pe Pipe Extrusion Line High output





Quick detail:



EQUIPMENT LIST:


Single Screw Extruder 1 unit

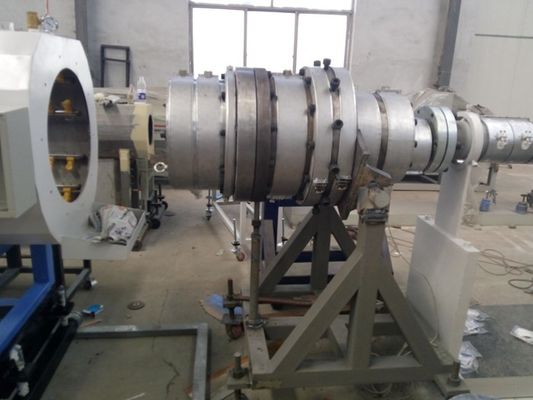

Mould 1 set
Vacuum Water Tank 1 unit
Water Cooling Tank 1 unit
Haul-off Machine 1 unit
Cutting Machine 1 unit
Stacker 1 unit
Optional Auxiliary Machine;
Crusher 1 unit
Mixer 1 unit
Pulverizer 1 unit
Air Compressor 1 unit





Description:



1.Our Power Cable PE Pipe Extrusion Line use high efficiency single screw extruder, ensures high output capacity. The electrical parts are all of good quality, famous brands. Pipes produced by Power Cable PE Pipe Extrusion Line are of high quality.



2.PE plastic pipe extrusion machine

Unique in design, the production line is equipped with BM separate high efficient barrier screw, featuring high automation, easy operation, continuous production and reliability. Plastic pipes produced are characterized by good heat, aging, environmental stress, cracking and creep resistance, and can replace galvanized steel pipes, cast iron pipes and cement pipes, which are choicest products for gas and water transmission between cities.



3. Special single screw extruder for polyolefin , having extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.




Applications:



1.It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.

2.PE pipe making line is consists of SJ series extruder,mould,vacuum tank,spraying cooling tank,haul-off,cutting machine and stacker.

3.PE pipe making line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc.

4.With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foaming pipe, etc. It can also produce PP,ABS,PPR,PEX, silicon core pipe and pipe material of other material



Main Technical Parameters

Extruder SJ-65/30B SJ-90/30B SJ-120/30B SJ-150/30B
  SJ-30/25B SJ-45/30B
  SJ-25/25B SJ-25/25B SJ-30/25B SJ-30/25B
Pipe Dia(mm) 20-63 20-160 110-400 315-630
Water Sizing Trough SGZL-75 SGZL-160 SGZL-400 SGZL-630
Water Cooling Trough SGPL-75 SGPL-160 SGPL-400 SGPL-630
Haul off machine SLQ-75B SLQ-160B SLQ-400B SLQ-630B
Cutting Machine STG-75 STG-160 STG-400 STG-630
Stacker EZ-6000 FZ-6000 FZ-6000 FZ-6000





Competitive Advantage:



1. CE&ISO9001 certificate

2. we have more than 15 years experiences

3. Machinery warranty time is 12 months starting from the date of Bill of Lading. Electric and electronic     parts excluded.
4.Training how to install the machine and how to use the machine.
5. Engineers available to service machinery overseas
