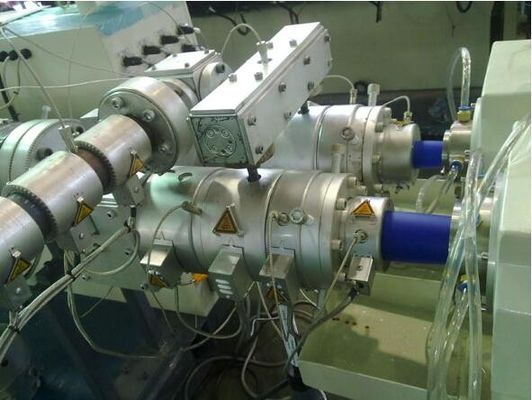

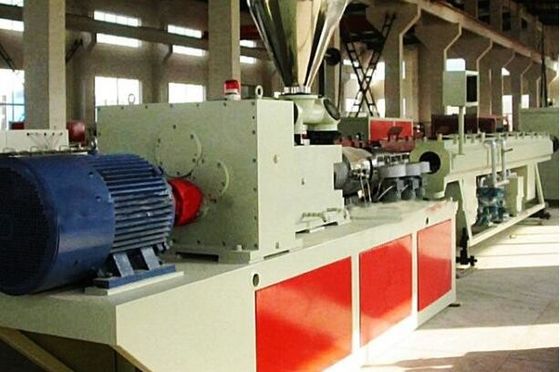

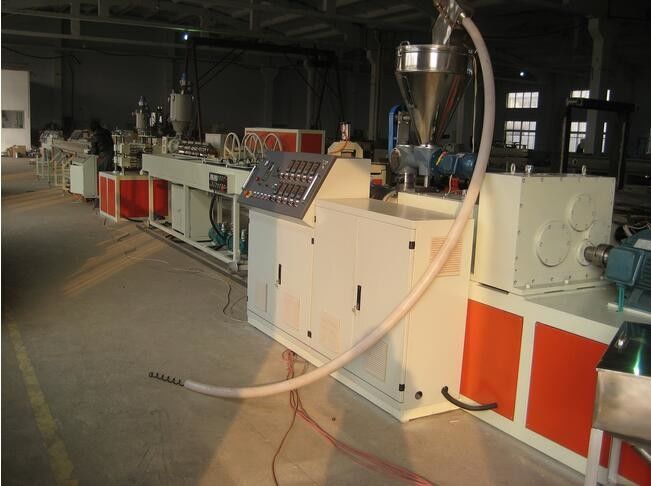

PVC Twin Screw Extruder , 16mm - 800mm Pipe Extruder Machine

China PVC Twin Screw Extruder , 16mm - 800mm Pipe Extruder Machine supplier

Large Image :  PVC Twin Screw Extruder , 16mm - 800mm Pipe Extruder Machine

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Detailed Product Description
Condition: New Material: PVC
Application: Pipe Screw Design: Double Screw
Automatic Grade: Full Automatic Brand Name: AORUI
After-sales Service: Engineers Availiable To Serive Certificate: CE&ISO9001

PVC Twin Screw Extruder , 16mm - 800mm Pipe Extruder Machine



Quick detail:



1.Human-machine interface
Easy to operation
High ouput



2.Pipe Diameter range: 16-800mm with different kinds of moulds design: Single Pipe Outlet, which we will design the machines to get the highest output for our customers.



3.Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker









Description:



1. GF series plastic pipe material production line is mainly used in the area of agricultural water supply systerm , architectural water supply systerm, pavement of cables , etc. as well as PVC material of all sorts of pipe caliber and wall thickness.



2. This machine group consists mainly of twin conical (parallel) screws extruder , vacuum calibrating tank , tractor , haul-off unit , cutting unit , tilter , etc. Single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excvellent products.



3. The drawing machine includes two - claw type , three-claw type , four- claw type , six-claw type , eight-claw type , etc. Saw cutting or planet cutting can be applied , it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable , the production efficiency is high.



4. With special device , it can produce inner wall sprial pipe , inner wall hollow pipe , and core layer bulpo pipe , etc. it can also produce PP , PE , ABS&PPR , PEX , sailicon core pipe and pipe material of other material. The planet-shaped cutting machine is fully automatic computer digital control , it has such advantages of simple operation , reliable property , etc. it has reached world advanced level.



Specifications:



Specification GF63 GF110 GF160 GF250 GF400 GF630 GF800
diameter of pipe dia16-63 dia16-110 dia32-160 dia63-250 dia160-400 dia315-630 dia450-800
Claw number of drawing machine 2 2 2 3 4 6 8
pulling force 6 8 11 20 30 40 50
drwing speed 15 12 8 9 4 2 2
total power of auciliary machine 14 14 14 21.5 41 56 64





Applications:



This pvc pipe machine,plastic pvc pipe extrusion machine for sale can produce PP-R pipe,PE-RT pipe,PEX pipe. PP-R pipe is non-toxic,healthy,heat-resistant and have good performance of warm keeping, it is convenient for welding and can also be recycled. PEX pipe has good character of high and low temperature resistant. Different from PEX, PE-RT don't need to crosslink but can be recycled and convenient for processing with the character of heat-resistant and better stability.











Competitive Advantage:



1. Pipe Diameter 16-800mm

2.High Efficient Single Screw Co-Extruder

3.Definitely Impressing Quality and Price

PVC Twin Screw Extruder , 16mm - 800mm Pipe Extruder MachinePVC Twin Screw Extruder , 16mm - 800mm Pipe Extruder Machine
