Product Details:
|
| Material: | PP | Condition: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Application: | Waste Plastic Recycling Machine |
| Automatic Grade: | Fully Automatic | Dimension(L*W*H)): | According To Model |
| Plastic Processed: | PP | Certificate: | CE&ISO9001 |
| High Light: | Plastic Pelletizing Machine,Plastic Granulating Machine |
||

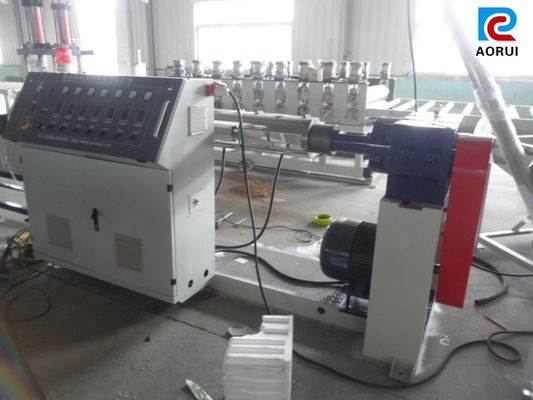

Single Screw Plastic Granules Machine , Plastic Recycling Machine
QUICK DETAIL :
Specialized foam-type regenerator is applied with deep groove swivel, double-mode decelerator, double outside-built steel bearing seat, equips with auxiliary machine, specified foam crusher and engineering-applied particle cutter. It is applied with hi-rotation design, combines with friction rapid temperature-rise principle, effectively control decomposition under high temperature ,and lift up particle quality and throughput. this machine is widely used to manufacture particle under the strict requirement from EPS,EPE and other super low-density foaming plastic.
Description:
1.RECYCLING MACHINE is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
2. It can evenly coat a layer of protection film on the surface of fertilizer granule to prevent caking and moisture. The internal structure of the machine has been specially designed according to the process requirements. It is an effective machine special for fertilizer equipment.

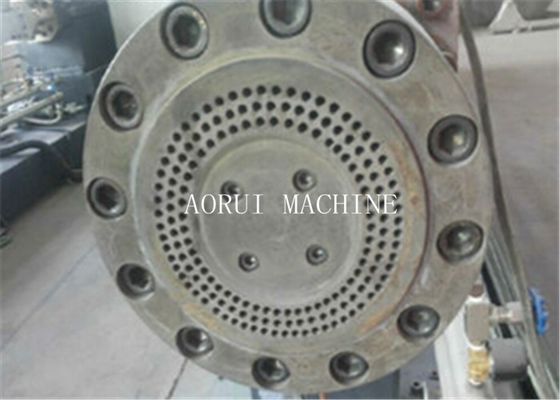

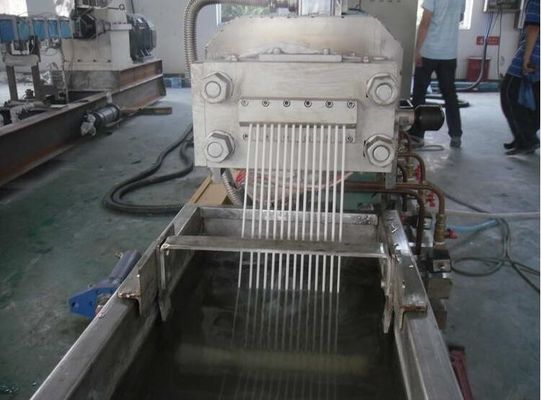

3. High-efficient force-feeder ensures high capacity feeding, low energy consumption. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity. Pelletizing style: water-ring cutting with extrusion mould, even cutting ensures good shape.Auxiliary machine: pellets cooling & classifying
Applications:
Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials. It equipped with automatic constant temperature, clectric changing filter nets. It also can pelletize the crushing material after fitting with a loader. The cutting machine adopts speed regulating motor. which can cut the material according to the feeding speed of the extruder. With such features as high output, low noise, stable performance and easy operation .It is a more ideal waste plastic film regenerative.
Specifications:
|
Model |
Screw diameter |
L/D |
Screw rotation speed (r/min) |
Max. extruding |
Motor power |
Heating zone |
|
SJ-45 |
45 |
33:1 |
73 |
60 |
28/35 |
3 |
|
SJ-50 |
50 |
33:1 |
90 |
120 |
37/45 |
3 |
|
SJ-65 |
65 |
33:1 |
90 |
220 |
55/75 |
4 |
|
SJ-75 |
75 |
33:1 |
90 |
350 |
90/110 |
4 |
|
SJ-90 |
90 |
33:1 |
90 |
500 |
160/185 |
5 |
|
SJ-120 |
120 |
33:1 |
80 |
750 |
280/315 |
5 |
|
SJ-150 |
150 |
33:1 |
80 |
1000 |
355/385 |
5 |
Competitive Advantage:
1. We are factory , we welcome customer to visit our factory and test the machine.
2. if client need , our engineers can go abroad to test the machine , and train the local workers until they can operate the machine.
3. We have CE&ISO9001 certificate
