Product Details:
|
| Brand Name: | AORUI | Material: | PVC |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Screw Design: | Double Screw |
| Dimension: | Sccording To Model | Certificate: | CE&ISO9001 |
| Place Of Origin: | Shandong , China(Mainland) | After-sales Service: | Engineers Availiable To Serive |
| High Light: | double screw extruder,two screw extruder |
||

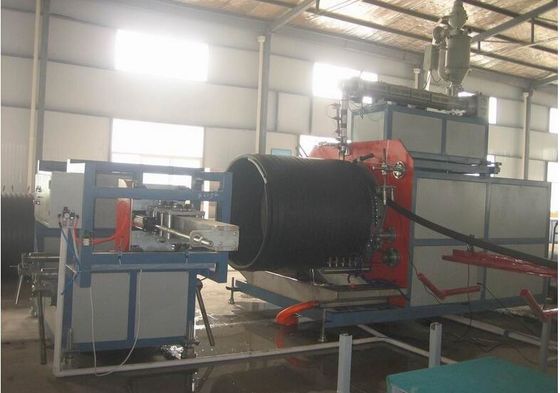

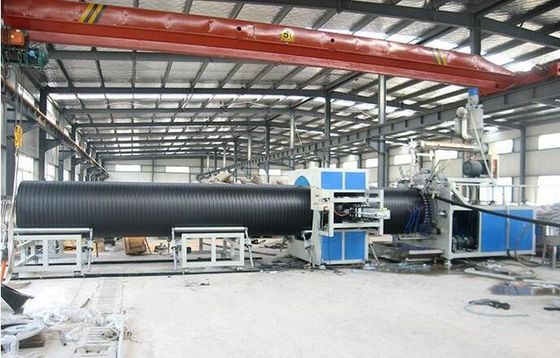

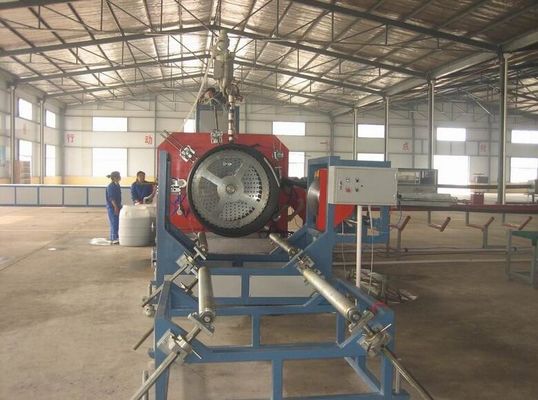

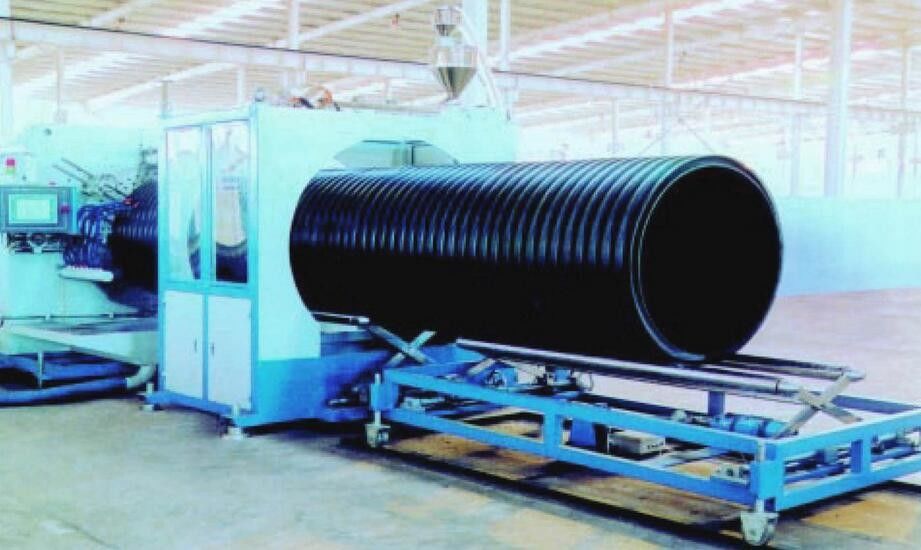

Plastic Sprial Pipe Production Line , Pvc Pipe Making Machine
Quick detail
Model: RJ-800SP , RJ-1200SP , RJ-1800SP , RJ-2400SP . RJ-3000SP
Pipe range(mm): 200-800mm , 400-1200mm , 800-1800mm , 1400-2400mm , 2400-3000mm
the production line consist of: Hopper , Extruder , Die core , die set , Vacuum calibrator unit , Spray unit , Piling up unit , Sprial cutting machine , Shape forming machine , Glue plast extruder , storage bin
Description:
1.Our large diameter sprial pipe production line comes both from the outstanding technology of Korea and abundant experiences. it features large output , high efficiency , steady operation , high ring stiffness , light weight per meter , good creep resistance performance , easy connection and economical construction.
2. Unique sizing and cooling mode is capable of producing pipe scope 50-200mm , production speed is up to 0.6-1.5m/min. Machinery is in sole possession of the special design to sizing cooling way to make the speed for leading position of the same line.
3.Close type corrugater and vacuum for forming.Forming mould is moving in a tunnel.Forming tunnel os clod by water.Forming mould is made of hard alloy steel and anti-corrosion and abrasion.No any connection between forming mould, then reduce time to change.Provide single wall corrugation dead die.
4. Our company will provided relevant information on various technology and business consulted by customers. After equipment arrival , our company will arrange professional engineers to install the machine and train the workers how to operate the machine untill they can operate it by themselves.
Applications:
The product pipe can be used to protect high pressure oil pipe,widely used in electric,wire,postal service and basic constructive of high way and seaport. The pipe has advantage of high strength, high tecacity, anti-corrosion, no transformation, easy to transfer and can be processed to any radian.
Specifications:
|
Model |
AS-65 |
AS-75 |
AS-90 |
|
|
Extruder |
|
AS-SJ65/28C |
AS-SJ75/28C |
AS-SJ90/28C |
|
Range of Pipe Dia. |
mm |
25-50 |
32-64 |
38-75 |
|
Installed Capacity |
kw |
33 |
45 |
58 |
|
Average Energy Consumption |
kw |
19.5 |
30.2 |
36.5 |
|
Dimension (L×W×H) (Approx) |
m |
8×3.3×1.5 |
9×4×1.8 |
12×4.5×2 |
|
Total Weight (Approx) |
T |
3.5 |
5 |
6 |
Competitive Advantage:
1. good after-service
2. spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
