Product Details:
|
| Condition: | New | Production Capacity: | 120-800kg/h |
|---|---|---|---|
| Screw Design: | Doble Screw | Material: | PVC |
| Automatic Grade: | Fully Automatic | Application: | Pipe |
| After-sales Service: | Engineers Availiable To Serive | Certificate: | CE&ISO9001 |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
16-63mm Fiber Reinforced Soft Pvc Pipe Extrusion Machine / Pvc Fiber Reinforced Hose Machinery
Quick detail:
Equipment list :
1. Feeding system two sets
2. single screw extruder two sets
3. Electric control system two sets
4. Extrusion mould and coating mould two sets
5. Cooling water tank two sets
6. Belt haul-off machine two sets
7. Fiber braiding machine one set
8. Double-position winder one set
9. Oven one set
Description:
Technics flow as below:
Raw material + additive → mixing → granulating → conveying feeding → single screw extruder → extruding mould → spray cooling water tank →belt haul-off → fiber winder → warm-up oven → single screw extruder → mould → spray cooling water tank → belt haul-off → meter measure → winder → finished product inspecting & packing.
this plant mainly use for manufactring pvc connection pipe,braided hose for all application, production of this plant is depend upon the model of plant.
The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.

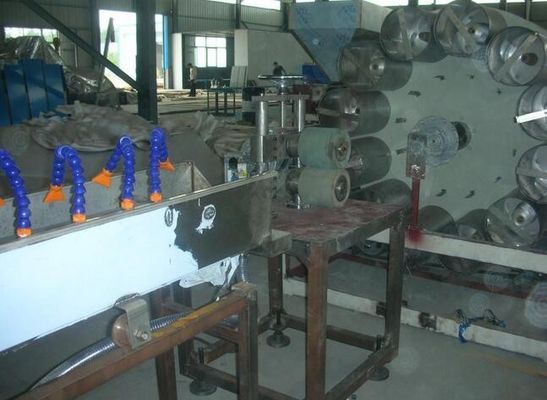

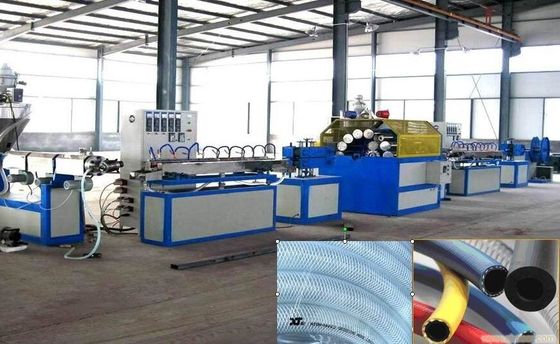

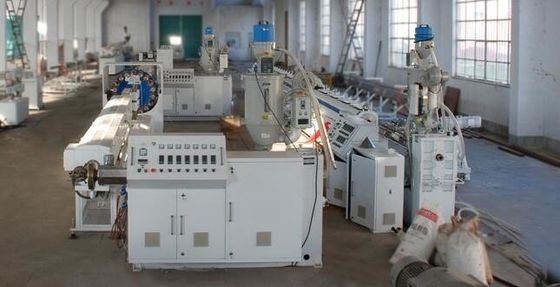

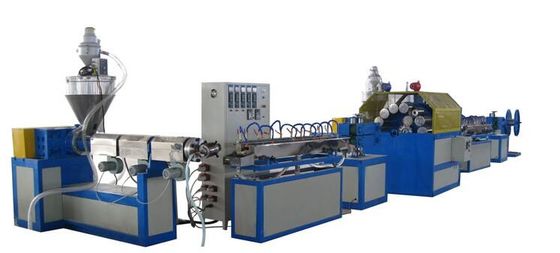

PVC fiber-reinforced hose production line mainly consists of extruder, spray water cooling tank, haul-off unit, fiber coiling machine and winding machine. It is rational in configuration, unique in construction, reliable in performance, simple in operation, convenient for maintenance and high in continuous capability; and has been greatly accepted by the customers.
Applications:
The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.
Specifications:
|
Extruder |
SJ65/28 |
SJ45/30 |
|
Diameter Range(mm) |
Φ12-Φ50 |
Φ6-Φ14 |
|
Output |
40-75 |
20-40 |
|
Installed Power(KW) |
50 |
35 |
|
Main Extruder |
SJ65/28 |
SJ45/28 |
|
Diameter Range(mm) |
Φ16-Φ50 |
Φ6-Φ14 |
|
Output |
40-75 |
20-40 |
|
Producing speed |
4-8m per min |
|
|
Installed Power(KW) |
50 |
35
|
|
Main Extruder |
SJ65/28 |
SJ45/28 |
|
Diameter Range(mm) |
Φ16-Φ50 |
Φ6-Φ14 |
|
Output |
40-75 |
20-40 |
|
Producing speed |
4-8m per min |
|
|
Installed Power(KW) |
50 |
35 |
Competitive Advantage:
1. good after-service
2. spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
