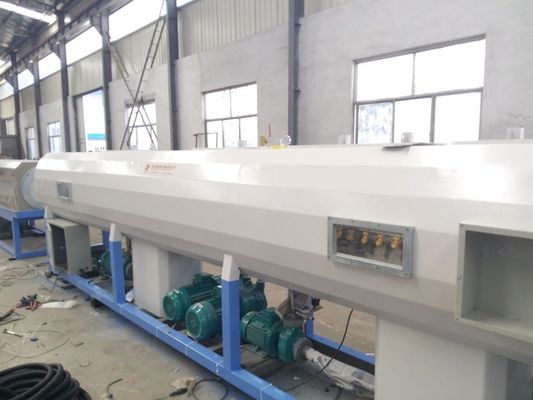

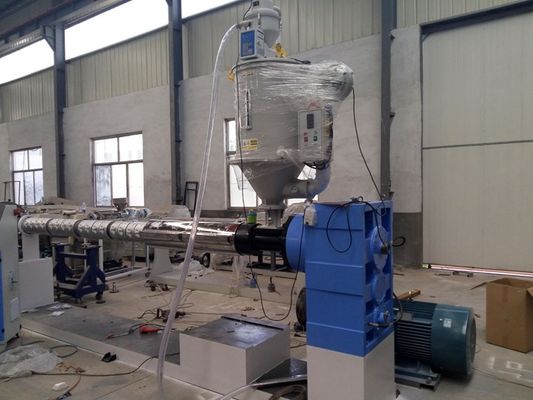

PERT Cool and Hot Water Plastic Pipe Extrusion Machine Single Screw

China PERT Cool and Hot Water Plastic Pipe Extrusion Machine Single Screw supplier

Large Image :  PERT Cool and Hot Water Plastic Pipe Extrusion Machine Single Screw

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ-90/33

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month
Detailed Product Description
Condition: New Type: PPR Pipe Extruder
Screw Design: Single Screw Feature: High Speed And Capacity
Product Pipe: Hot And Cold Water Pipe Pipe Range: According To Customer
Material: PE / PPR Voltage: 380v

PERT Cool and Hot Water Plastic Pipe Extrusion Machine Single Screw





Quick detail:



Raw material+master batches →mixing → vacuum feeding→material dryness → single screw extruder → color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting&packing





Description:





1. PE / PP / PPR Pipe Extrusion Machine/ppr pipe extusion line is mainly used to produce pipe material whose raw material is mainly PP-R resin. It is also suitable for producing pipe materials of PP, PPB, PPC, and PEresin.



 2.  Raw material+master batches →mixing → vacuum feeding→material dryness → single screw extruder → color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting&packing





3.  Diameter: 16~160mm
     Pipe material:PPR / pe /pp
     Line length: 30m~38m


4. it can also be equipped with length-measuring and thickness increasing instruments . this line is characterized of reliable performance and high production efficiency . anti-noise spiral pipe and foam core pipe production lines are also available according to customers requirement.

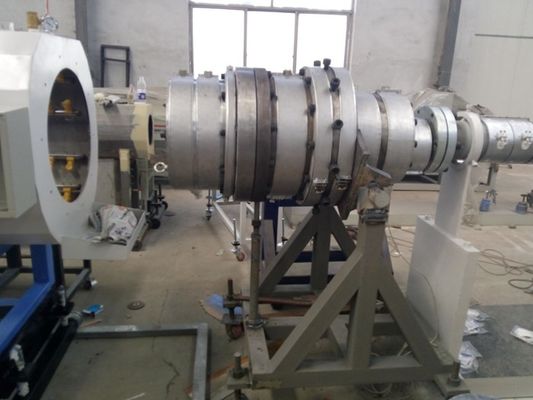

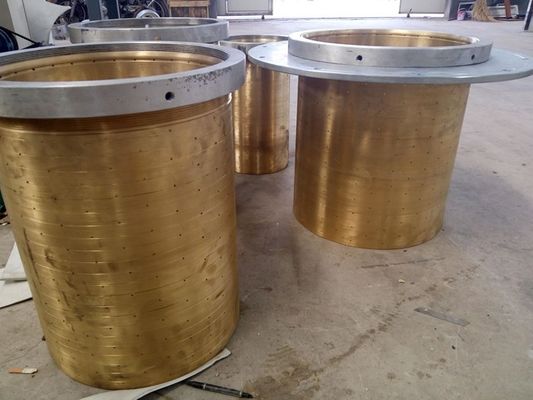

5. Extruder specially designed high efficient for PPR&PPB pipes ,equipped with reducer which is high speed and low noise,adding material sect with cooling unit and sense reversing spiral grooved,different isometry and undulant screw which allows great output,lower melting temp,and lower energy consumption. .Mould&die coextrusion spiral die assures that melting ,pressure and flux are uniformity,surface of pipe is lubricity.



Applications:



1. building hot and colde water system, including central heating system;
2. building heating system, including floor,wall and radiant heating system;
3. can be directly used in purfied water drinking water supply system.
4. Central air condition system'
5. Adopts co-extrusion die head and adds marking line for pipes





Specifications



Model/Spec.

Diameter range (mm)

Extruder model

Line speed (m/min)

Max. Capacity (kg/h)

Installed power (KW)

LPSG110

50-110

LSJ65/30

0.5-2m/min

100

50

LPSG200

75-200

LSJ90/30

0.5-2 m/min

140

80





Competitive Advantage:





1. Super quality and competitive price
2. With a variety of models

3. Rich experience , we have more than 15 years experiences in this filed

PERT Cool and Hot Water Plastic Pipe Extrusion Machine Single Screw
