PE / PPR / PERT Cool and Hot Water Plastic Pipe Extrusion Line Single Screw

China PE / PPR / PERT Cool and Hot Water Plastic Pipe Extrusion Line Single Screw supplier

Large Image :  PE / PPR / PERT Cool and Hot Water Plastic Pipe Extrusion Line Single Screw

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detailed Product Description
Condition: New Screw Design: Double Screw
Brand Name: AORUI Dimension: According To Model
Application: Pipe Certificate: CE&ISO9001
Place Of Origin: Shandong , China Port: QINGDAO



PE / PPR / PERT Cool and Hot Water Plastic Pipe Extrusion Line Single Screw



Quick detail:



1. Special single screw extruder for polylefin , having extrusing velocity and effective plasticization.

2. Seperation mixing screw specialized for polyolefin.

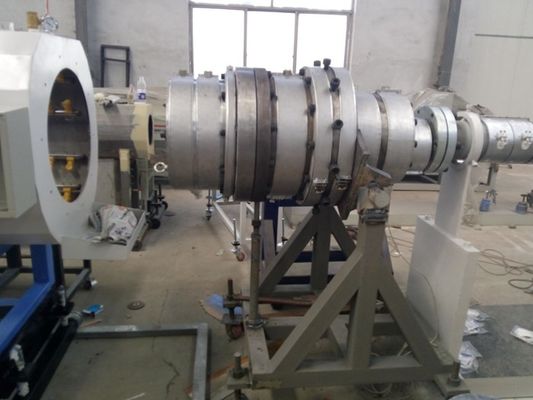

3. Specially designed 2-3 co-extrusing die, reasonable channel , smooth outside and inside wall , and little internal stress.

4. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min.

5. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.





Description:

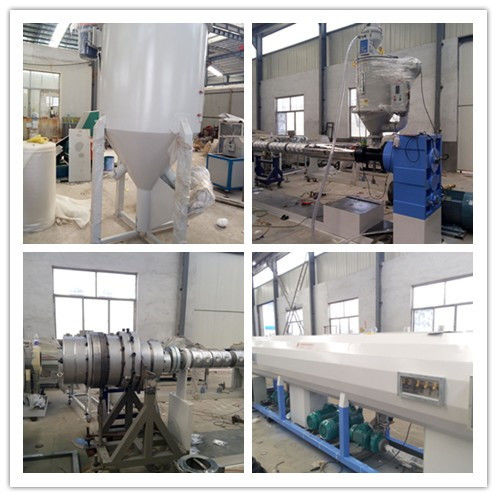

1. PE series pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter,both vacuum pump and driving motor have applied excellent products. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe,

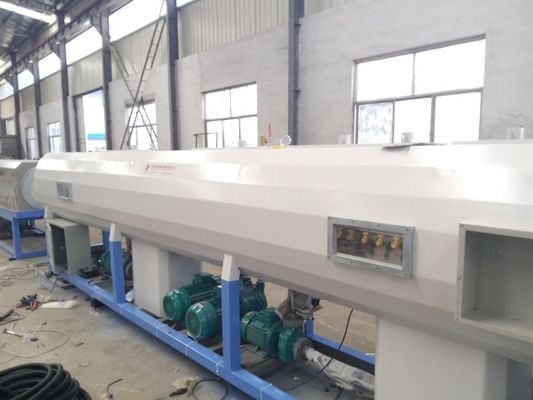

2. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.



3. Our plastic making machine can make many kinds of plastic productions like:PVC pipe,CPVC pipe,PE/HDPE/PE-RT pipe,PP-R pipe,plastic foamed profile,WPC profile and panel,wood plastic composite and so on. Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.






Application:



1.Build hot and cold water system, including central heating system.
2.Build heating system, including floor, wall and radiant heating system.
3.Central air condition system.
4.With high quality equipments in this line, PERT pipes are of good and stable features.

5.We adopts imported parts to build the whole line, so the PERT pipe extrusion line has a perfect output and high quality.



Main Technical Parameters:



Model SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92
Screw Dia.(mm) 51/105 55/110 65/132 80/156 92/188
Max. Rotating speed(rpm) 40 38 38 37 36
Main Motor(kw) 18.5 22 37 55 90
Capacity(kg/h) 80~100 100~150 150~250 250~380 380~700
Center height(mm) 1050 1050 1050 1050 1100
Net Weight(kg) 3000 3500 4000 5500 8000
L*W*H 3.6*1.1*2.1 3.6*1.1*1.2 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5



Competitive Advantage:



1. Engineers availiable to service machinery overseas

2. We have more than 15 years experiences

3. CE&ISO9001 certificate

4. Widely application

PE / PPR / PERT Cool and Hot Water Plastic Pipe Extrusion Line Single Screw
