Product Details:
|
| Raw Material: | PP / PE | Brand Name: | AORUI |
|---|---|---|---|
| Weight: | 10-14 Ton | Voltage: | 380v50hz |
| Place Of Origin: | Shandong , China(Mainland) | Production Speed: | 12m/min |
| After-sales Service Provided: | Engineers Available To Service | Application: | Pipe |
| High Light: | Plastic Granulating Machine,Plastic Recycling Machine |
||
PP / PE Twin Pipe Extrusion Machine , 380v Plastic Pipe Manufacturing Plant
Quick detail:
1. First class pipe die was designed with many years experience.
2. Perfect twin pipe vacuum sizing systerm.
3. Controlled independently uniltary structure twin pipe hauling mechanism and synchronous cutting device.
4. Optional length set and accrate adaption stacker.
Description:

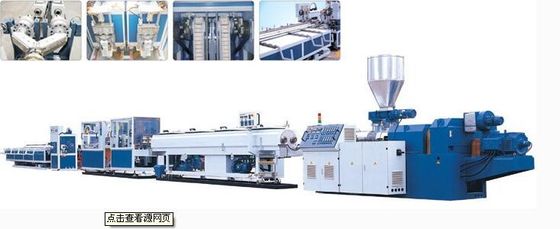

1. Mixing Machine → Material Feeder → Conical Twin-screw Extruder → Vacuum Calibration Tank→ Haul-off Machine → Cutting Machine → Stacker →Waste Pipe Recycling Machine(Crusher&Milling Machine)
2. It can process all kind of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread ,ribbon, insulating layer of cable, hollow products and so on .It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.

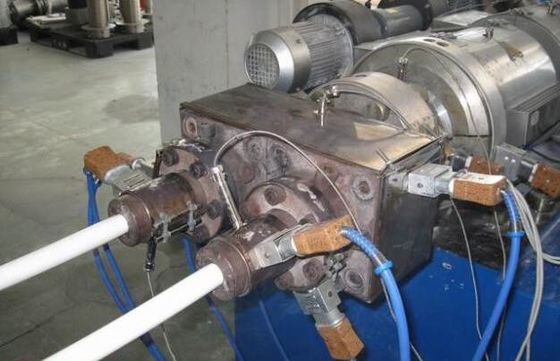

3. The main extruder adopts PE high-efficiency screw, notched feeding cylinder and strong water jacket cooler, which greatly improves its transmission capacity.
The high-efficiency double-cavity vacuum calibrating technology and spray cooling tank improve the rate of finished products.
pe pipe extrusion line adopts multi-pedrail tractor to drive all pedrails through central motor to get synchronous height and guarantee pipe's roundness.
And the high-speed, precise designed cutting machine is low in noise.
Main Technical Parameter
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12m/min | 12m/min |
| Max.Output | 160kg/h | 220kg/h |
Competitive Advantage:
1.High-quality equipment and highly competitive market prices can bring you more profits.
2. More than 15 years of plastic extrusion machine industry experience, can solve the various problems in the work. Improve machine efficiency for you.
3. More than 15 years of plastic extrusion machine industry experience, has a good supply system, can provide you one-stop service with the pre-sale , sale and after sale service. Save your purchasing cost and maintenance costs
