Product Details:
|
| Brand Name: | AORUI | Model Number: | SJSZ51/105 |
|---|---|---|---|
| Customerized: | Customerized | Application: | Pipe |
| Place Of Origin: | Shandong,China | Pipe Diameter: | 20-160mm |
| Dimension: | According To Model | Voltage: | 380V50HZ Or Customized |
| High Light: | Plastic Extruding Machine,Plastic Extrusion Equipment |
||

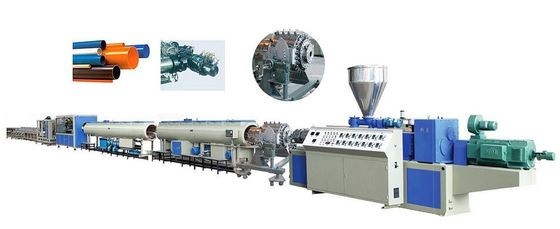

Double Screw 16-800mm pvc Plastic Pipe Extrusion Line For Agricultural Water Supply Systerm
Quick detail
1. For producing electric conduit, supply and drain water pipe and so on.
2. Diameter: 16-630mm.
3. It can produce two or four pipes at the same time if pipe dia. are 16-63mm.
4. Competitive price, quick delivery, good quality and patient service.
Description:
1. Extruder
--- High extrusion capacity, low melt temperature.
--- Special screw design insure the high-efficiency and high yield
--- Bevel gear design of high hardness and low noise brings dependable performance with long service life.
--- Adoption frequency variable speed adjusting.
--- According to the different material to choose the different extrusion machine.
2. Mould
--- Mould material: 3Cr17, 3Cr17MoNiV, DIN1.2316 or as per your request
--- Mould cavity: 1 or multi-cavity
--- Mould composition: Die head, aluminum heating band, calibrators or calibration sleeve & water tank
3. The vacuum cooling tank
--- The tank body made by stainless steel.
--- The water pump of high power and spraying head of special design bring high efficient spraying cooling.
--- The percolation unit with the bypass pipeline improved the stability of the equipments and reduce maintenance (pipeline and spray head is blocked due to impurity)
--- Lengthways move by motor regulating.
--- Provide different length and quantity cooling arrangement according to specification and speed of pipe to be produced.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system , architectural water supply system , pavement of cables , etc . as well as pvc pipe material of all sorts of pipe caliber and wall thickness.
Our competetive advantages:
1. good pre-sales and after-sales service
2. our engineers can go to aborad to installment the machine and teach the workers
3. easy to operate and high output
