Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Screw Design: | Twin Screw | Automatic Grade: | Fully Automatic |
| Voltage: | 380v 50HZ | Place Of Origin: | Shandong , China |
| Product Type: | Corrugated Pipe | ||
| High Light: | two screw extruder,twin screw extrusion machine |
||

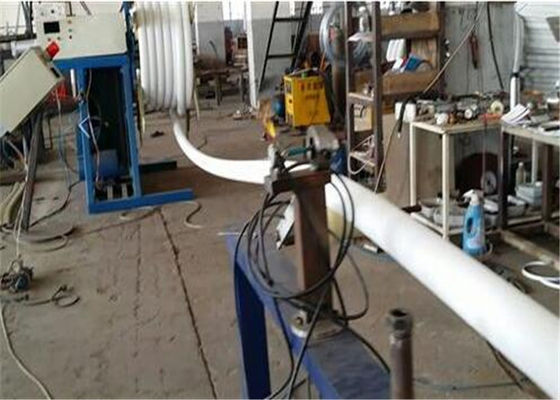

Twin Screw Corrugated Pvc Pipe Making Machine / Extruder stable running
Quick detail:
1. PVC corrugated pipe making machine is widely used. By the company absorbing foreign advanced technology, independent research and development of PVC double wall corrugated pipe production line, with a number of patented technologies, production diameter range 63mm -1000mm .
2. Easy to change the mould blocks , high speed , stable running , high quality of pipe .
Description:
1. High degree of automation, stable and high yield. New efficient twin-screw extruder, extrusion volume. Years of technological innovation and a wealth of experience to get customers alike.

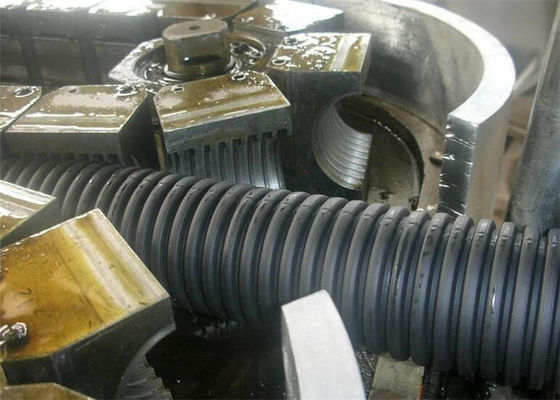

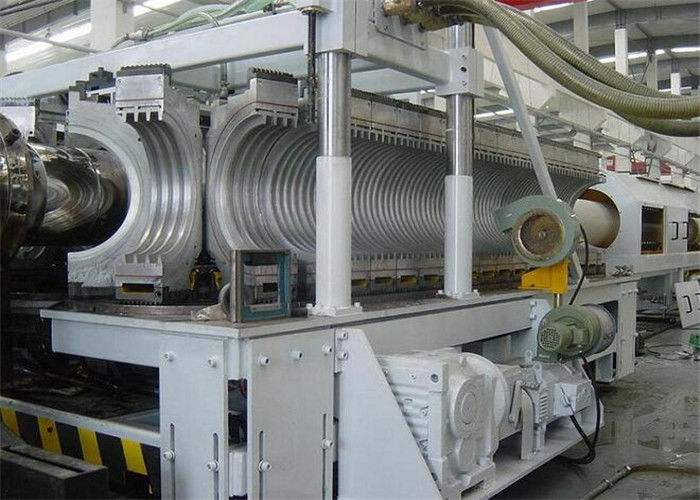

2. Corrugator adopts closed water cooling structure ,closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly ,running stablely . You even couldn’t see the connecting line on the surface of pipe . Cooling water is cycling inside the corrugator ,it will make the cooling speed fast, so the production speed of pipe will be raised highly .
3. This machine is utilized to produce PE PP PVC single wall corrugated pipe which are widely used as electric conduit, drain water pipe for clothing washer and so on.
Single wall corrugated pipe both inside and outside surface are corrugated, the wall thickness is small. So this kind of pipe can reduce cost than solid pipe.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Applications:
PVC Single Wall Corrugated Pipe Making Machine can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity/pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .
Competitive Advantage:
1. provide service manual and maintenance instruction of main electric appliances
2. responsible for installation, debugging and training
3. CE & ISO9001 certificate
4. engineers availiable to serive to go abroad
