Product Details:
|
| Brand Name: | AORUI | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Voltage: | 380v 50HZ | Place Of Origin: | Shandong , China(Mainland) |
| Raw Material: | PVC | Screw Design: | Twin Screw |
| Product Type: | Corrugated Pipe | ||
| High Light: | two screw extruder,twin screw extrusion machine |
||
Corrugated Pipe Twin Screw Extruder , Single Wall Corrugated Pipe Machine
Quick detail:
1. New single wall PVC corrugated pipe making machine/PE corrugated pipe making machine with various diameter and wall thickness, from 16-800mm.
2. PVC corrugated pipe extruder,adopts twin screw extruder with sixty pairs forming block, production speed is higher.
3. PVC Single Wall Corrugated Pipe Making Machine can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity/pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .
Description:

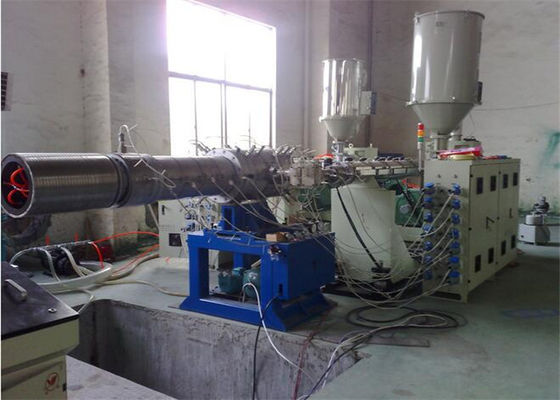

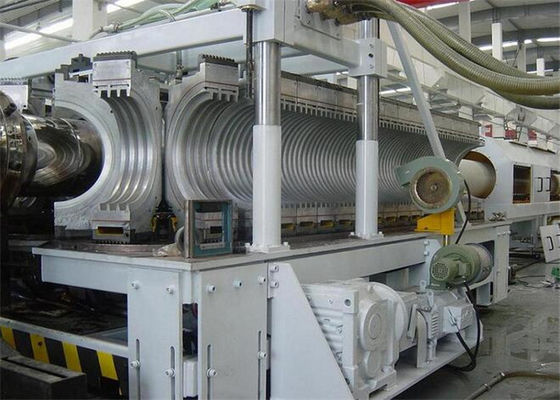

1. The PVC corrugated pipe production line consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.
2. Molding corrugated pipe with smooth inside and outside surface,and even ripple at one time by corresponding die. Corrugated pipe can be used as wire and cable passing pipe , washing machine drain pipe, dust collector pipe and ventiduct. Small size corrugated pipe of 4-40mm is also used in car,
3. This machine is utilized to produce PE PP PVC single wall corrugated pipe which are widely used as electric conduit, drain water pipe for clothing washer and so on.
Single wall corrugated pipe both inside and outside surface are corrugated, the wall thickness is small. So this kind of pipe can reduce cost than solid pipe.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Applications:
1. GPM series PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes.
2. This machine is utilized to produce PE PP PVC single wall corrugated pipe which are widely used as electric conduit, drain water pipe for clothing washer and so on.
Competitive Advantage:
1. CE&ISO9001 certificate
2. our engineers availiable to go abroad to service , we can tarin the local workers how to use thhe machine and maintain the pvc corrugated pipe extrusion machine.
3. we offer the technical assistance and market investigating.
4. Fast delivery and good quality
