Product Details:
|
| Screw Design: | Double Screw | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Condition: | New | Voltage: | 380V 50HZ |
| Place Of Origin: | Shandong , China | Certificate: | CE & ISO9001 |
| Color: | White , Black , Yellow Or According To Customer's Requirement | After-sales Service: | Engineers Availiable To Service |
| High Light: | two screw extruder,twin screw extrusion machine |
||

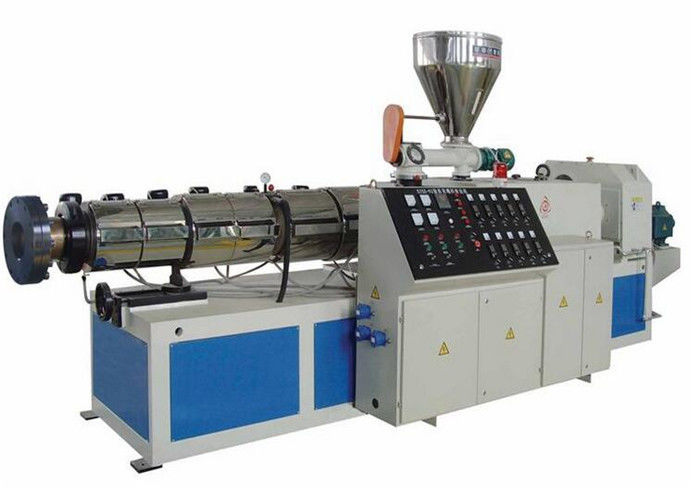

SJZ Conical Twin Screw Extrusion Machine / Pvc Pipe Extrusion Line
Quick detail:
1. SJZ series conical double screw extruder especially used for extrusion PVC powder, it has advantages as good mixing, large output, working steady , long service life time etc. equipped with series mold and auxiliary machine, it can produce various PVC pipes, profiles, sheets, plates, bars and it also can be used for pelletizing.
2. Equipped with appropriate screw and auxiliary machines, can exturder thermoplastic especially RPVC in to pipe, panel, sheet, film, special profile directly. Complete the procedure of changing plastic quality and powder granulation as well.
Description:

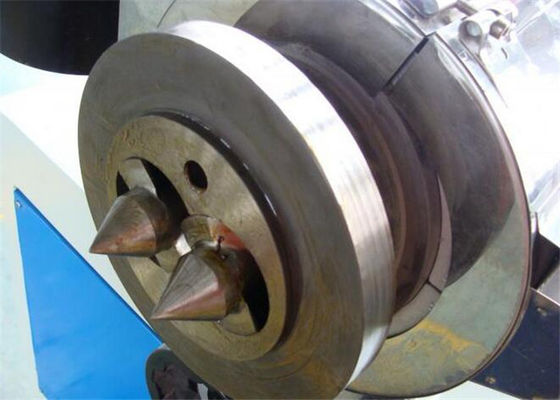

1. SJSZ series of conical twin-screw extruder is used for extrude PVC powder to become plastic pipe, profile, plate and etc when change different mould, screw and auxiliary equipments.

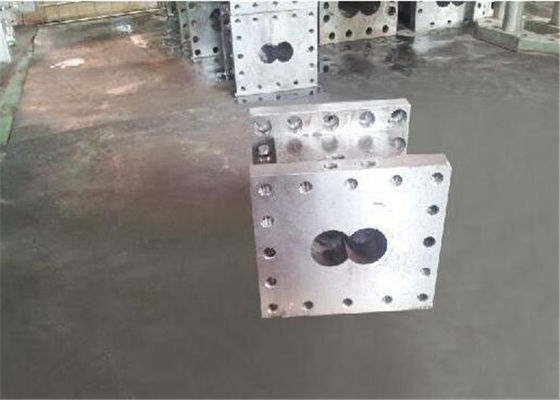

2. It includes screw, barrel, gear transmission system, heating, cooling and electric control and etc.
3. The screw has applied oil cooling system. Bareel is cooled by special wind cooling system.
4. Vacuum exhausting and material feeding device is fixed with machine.
Specifications:
| Model | SJSZ45/100 | SJSZ51/105 | SJSZ55/120 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| (kw) Power of drive motor | 15 | 18.5 | 22 | 37 | 55 | 110 |
| (mm) Screw diameter | Φ45/Φ100 | Φ51/Φ105 | Φ55/Φ120 | Φ65/Φ132 | Φ80/Φ156 | Φ92/Φ188 |
| No.of screw | 2 | 2 | 2 | 2 | 2 | 2 |
| Rotational speed | 36 | 36 | 36 | 36 | 36 | 36 |
| Nm Torsional moment of screw | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
| PVC Capacity PVC (kg/h)powder |
70 | 100 | 150 | 250 | 400 | 750 |
| Central height | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 |
Applications:
With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation. It can also extrude PP.PE pipe at high speed by changing special barrel.
Competitive Advantage:
1. provide service manual and maintenance instruction of main electric appliances
2. responsible for installation, debugging and training
3. CE & ISO9001 certificate
4. engineers availiable to serive to go abroad
