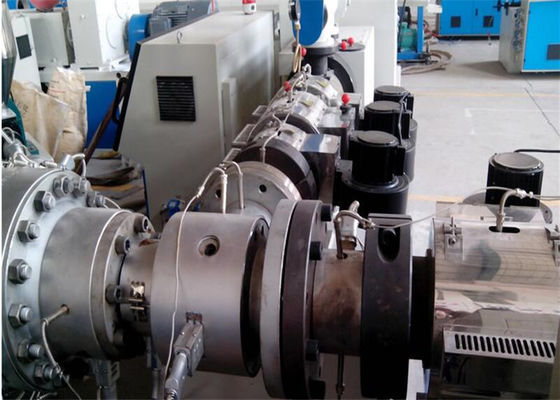

Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe

Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe
Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe

Large Image :  Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE&ISO9001
Model Number: SJ-90/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe

Description
Raw Material: PE Brand Name: AORUI
Screw Design: Double Screw Voltage: 380V 50HZ
Dimension(L*W*H): According To Model Contorl: PLC Control Systerm Availiable
Autoamtic Grade: Fully Sutomatic
High Light:

Plastic Extruding Machine

,

Plastic Extrusion Equipment

pe Corrugated Optic Duct Cable Protection Sleeve Pipe Production Line / PE Pipe Extruder
Quick detail:


1. Special single screw extruder for the use of polyolefine material , high speed extrusion and effective plasticization.



2. This machine line is used to produce carbon-fiber pipe which consisted of PE and Carbon.



3. PE Carbon wire reinforced Spiral Pipe Extruder Machine is mainly used for producing PE spiral pipe. With a special technology, we can add a steel wire in the middle of the rope when extruding the pipe. So when the pipe is finished, it has a steel wire in it already. When you want to put the electric wire or cable inside the pipe, you can use the steel wire to draw it. You don't need to cut the pipe. So it will protect the cable or electrical wire better.



Description:


1. PE Carbon Spiral Reinforcing Pipe Production Line

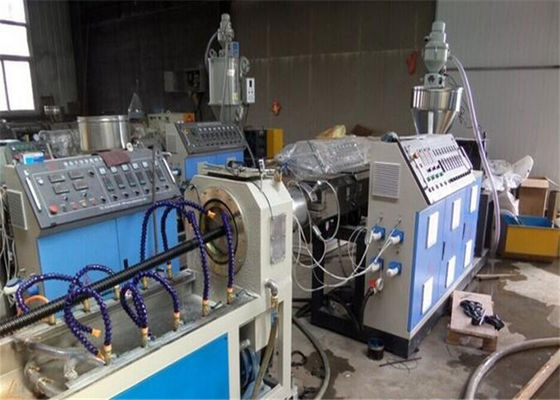

The PE spiral pipe production line is composed by :



a.Extruder with feeding machine 2.Die head&mould

b.vaccum calibration &water spray cooling trough 4.haul off machine

c.winder for small diameter pipe ,or cutter for big diameter pipe &unloading stacker



2. Pipe feature



a.Exterior Smoothly, No starving crack scuff and burr, No patency foaming and uneven, No inclusion.



b.Good resistance to high and low temperature performance,oil resistance,abrasion resistance,antistatic property



c. Good tensile strength and impact resistance.



d.Has good UV resistance. Black spiral protection sleeve product line by adding a certain ratio of carbon black to enhance the spiral sleeve UV protection properties. This is the black spiral protection sleeve protective cover than the other colors better UV performance reasons



3. The feature of the pe carbon sprial machine:



a. All kind of polyolefine material , multi-layers soiral strengthening pipe can be co-extruded for various uses , 80% of recycle material can be used in production. Optimumspiral bronze sizing sleeve , pre-cooling and powerful vacuum suction device in the entrance , sutting for high speed extrustion of pipes.

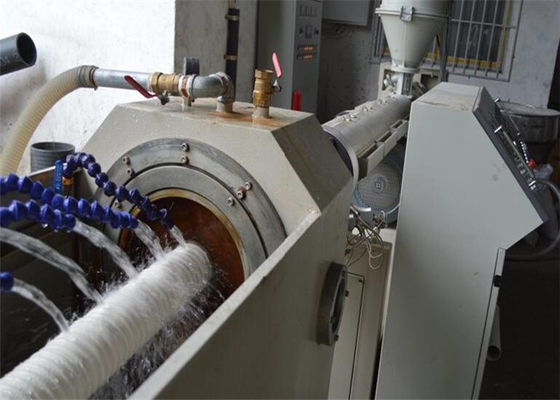

b. Specific design for spray cooling trough. cooling water trough is made of stainless steel , high efficient cooling comes from peculiar spraying riozzle and high efficiency water pump. three - dimensional regulation , longtudinal move by motrop.



c. Matches machinery special composite die , this unit may use composite extrusion underground corrugated optical duct.







The main technical parameters:

Extruder SJ-90/30B SJ-65/30B
Die(mm) 75-200 50-150
Sizing water tank SGZL-200 SGZL-150
Hauling machine SLQ-200 SLQ-200
Winder SQ-200 SQ-150



Applications:



The pipe is mainly used to protect high pressure oil pipe,widely used in electric,wire,postal service and basic constructive of high way and seaport. The pipe has advantage of high strength, high tecacity, anti-corrosion, no transformation, easy to transfer and can be processed to any radian.




Competitive Advantage:


1. Good service and reasonable price



2. Technical assistance and good pre-sales and after-sales service



3. high quality


Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe 0Auto Plastic Pipe Extrusion Line for pe Corrugated Optic Duct Cable Protection Sleeve Pipe 1
