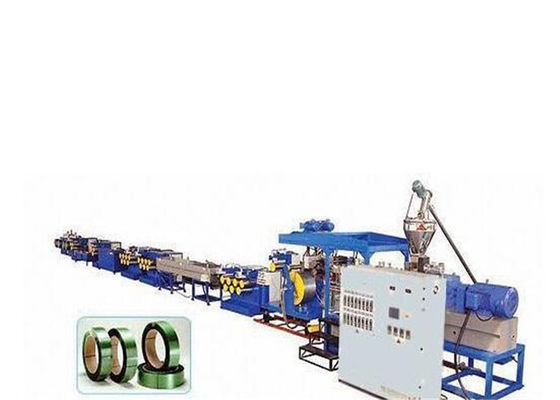

Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line

Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line
Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line

Large Image :  Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ-90/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line

Description
Brand Name: AORUI Port: QINGDAO
Screw Design: Single Screw Width: 5-19mm
Power: 37kw Voltage: 380V 50HZ
Straps: 1-6straps Place Of Origin: Shandong , China
High Light:

Strap Making Machine

,

Automatic Strapping Machine

New Style PET Strapping Band Machine , PET Strapping Machine Production Line



Quick detail:



1. PET strapping band machine



2. pet packing belt , drawbentch production line



3. plastic pp / pet strapping band making machine



Description:



1. Accurate dosing and raw material blending. Preheat and dry circulating automatically. Even plastication, stable extrusion and extract temperature control. Measuring pump ensure consecutive and stable production. Big hauling force stretching device and insulation oven. Big capacity stainless steel water trough, automation liquid level control.



2. PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.



3. Single screw or twin screw technique for option depending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line , the dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.






Technological parameter:



Strapping diameter

6-32mm

Screw diameter

65

L/D

34:1

Screw material

38CrMoAlA

Barrel material

38CrMoAlA

Barrel heating

Casting aluminum

Barrel cooling

Water

Driving motor

37kw

Cooling tank length

1200mm

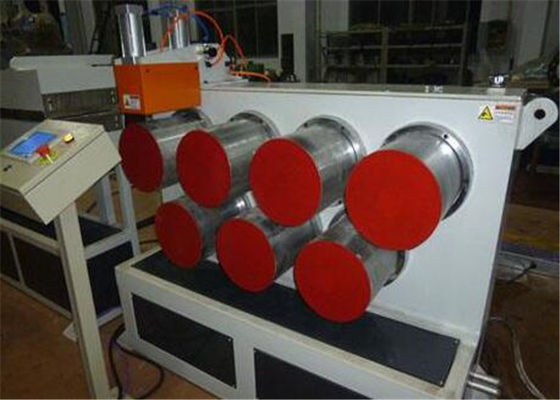

Seven Pre-heating roller

Dia. 215mm

Stretch oven

Carbon Steel welding

Heating power

15kw

Five stretch roller

Dia. 215mm

Three cooling roller

Dia. 215mm

 Calibrating box length

4000mm

 Three roller pulling

Dia. 215mm

Winding unit

Automatic winding

Total installation power

~105kw

Machine dimension

38000x1300x28000mm

Weight

18ton





Application :



PET has advantsges such as good stiffness, high temperature resistant, its specific gravity is 1/5 the one of steel. It is mainly suitable for packaging for various trades.



Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line 0Single Screw Strapping Plastic Banding Machine For PET Strapping Machine Production Line 1





Competitive Advantage:



1.100%recycle material


2.strong vacuum system to dispense with dehumidify and dry


3.the recycle material consumption is low
