Product Details:
|
| Brand Name: | AORUI | Port: | QINGDAO |
|---|---|---|---|
| Inverter: | ABB | After - Sales Service: | Engineers Availiable To Service |
| Certificate: | CE & ISO9001 | Output: | 2-800kg/h |
| Automatic Grade: | Fully Automatic | Type: | Profile Extrusion Machine |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||
WPC Plastic Profile Production Line , WPC Wood Plastic Profile Extrusion Line
Quick detail:
Application & Features:
1.Storage industry:for machines packing carton and wood polymertray, etc.
2.Architecture industry:such as architecture mould, movable rooms and materials,door,window,stair handrail,decorative materials and floor materials,etc.
3.Urban scenery:such as pavilion,chair,flower box and plank floor,etc.
4.Production can be customized according to different profiles and dies and user needs.

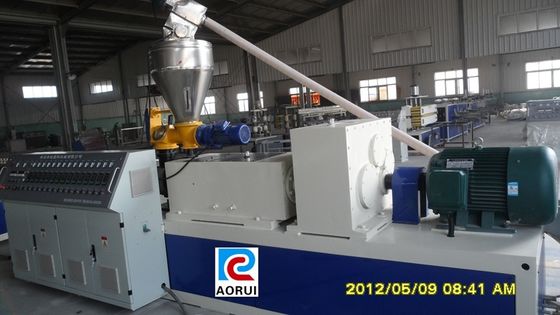

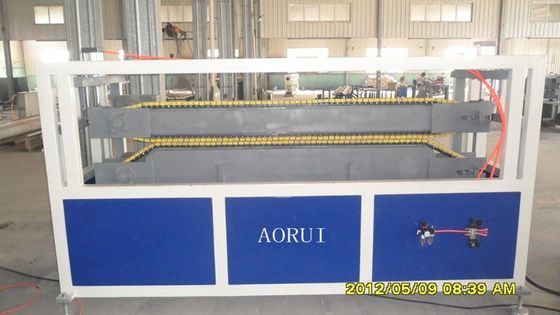

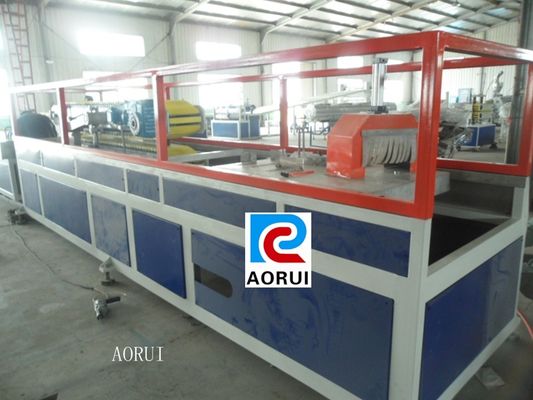

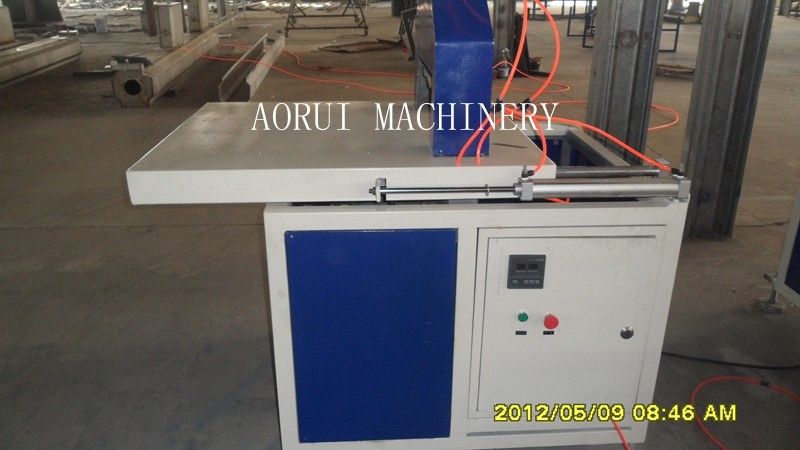

5.The twin-screw extruder is mated with vacuum formizing table, tractor, cutting machine, stirring platform and other auxiliary equipment.
Description:
1. These machine can use the one step extrusion machine and it also can use the two-step extrusion method features the machine can gain the high output and stable extrusion pressure.
2. A pre heating feeder is mounted on the top of the mounted on the top of the extruder which extracts the humidity from the wood powder , so that the feeding section of the extruder can be filled with enough material and the plastification effect will be better.
3. Special and well designed screw enables the raw material to be evently stay in the extruder. The screws and barrel are bi-metallic treated , more wearable and anti-corrosion.
4. Needless granulating of materials, mixed with wood powder, the material can be directly used to extrude wood-plastic profiles.
Suitable material: PE, PP + wood powder, PVC + wood powder
Applicable for producing salver, packaging box board and decorative sheets, etc.
5. Process Flows:
Plant fiber (20-40 mesh) + recycled plastic(PE/PP) + additives
high speed heating mixer --WPC granule extrusion line --PE WPC profile production line-- finished productsanding/brushing/embossing surface treatment crusher for recycle
Applications:
Chang different extruding mould,this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc.
Specifications:
| Model | Max width(mm) | Exreuder model | Max.plastisizing capaxity(kgh) | Drive motor power(kw) |
| YF108 | 108 | SJZ51/105 | 150 | 18.5 |
| YF180 | 180 | SJZ55/110 | 150/190 | 22 |
| YF240 | 240 | SJZ65/132 | 250 | 37 |
| YF300 | 300 | SJZ80/156 | 250 | 37 |
| YF400 | 400 | SJZ80/156 | 350 | 55 |
| YF500 | 500 | SJZ80/156 | 350 | 55 |
| YF600 | 600 | SJZ80/156 | 400 | 75 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
