High Efficiency PP Plastic Sheet Extrusion Line Sheet Extrusion Macnchine / Sheet Extruder

China High Efficiency PP Plastic Sheet Extrusion Line Sheet Extrusion Macnchine / Sheet Extruder supplier

Large Image :  High Efficiency PP Plastic Sheet Extrusion Line Sheet Extrusion Macnchine / Sheet Extruder

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detailed Product Description
Condition: New Screw Design: Single Screw
Automatic Grade: Fully Automatic Voltage: 380V 50HZ
Place Of Original: Shandong , China(Mainland) Application: Plastic Sheet
Plastic Processed: PP After-sales Service: Engineers Availiable To Service

High Efficiency PP Plastic Sheet Extrusion Macnchine / Sheet Extruder





QUICK DETAIL :



1. raw material: PP



2. type: plastic sheet extrusion machine



3. Certificate: CE & ISO9001



4. Control: frequency control



5. Place of original: Shandong , China



6. Processing type: extrusion



7. Model number: SJ65/33



8. Name: PP plastic sheet making machine







Description:

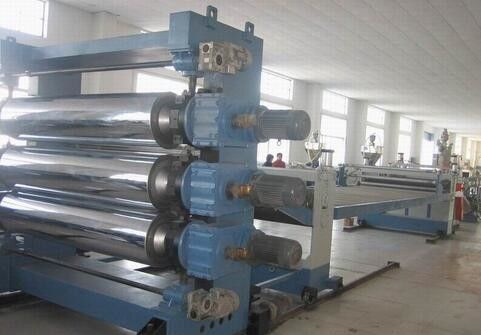

1.  The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistance force in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine.



2. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.



3. Adopting the oversea advanced technology to make the optimization design with big screw L/D ratio and high production capacity. To change the net by full-auto hydraulic changing net, easy and fast. The upper and lower roll wheel of 3-roll calendar are adopted the hydraulic moving, the pressure can be adjusted, suitable for the different materials.



4. Adopting double station center winding for the winding device, matched the magnetic powder tension control. plastic sheet production line is capable of continuously producing mono-layer or multi-layer sheet and plate with the width less than 3000mm and thickness of 0.25-30mm .The products are widely used in the fields of stationery,lunch box ,jelly cups ,beverage cups, food container.



Applications:



This line is specially used for producing PP/PE single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.




Specifications:





Extruder Model LMSB-90/33 LMSB-100/33 LMSB-120/33 LMS-100/65 LMSB-120/65
Sheet Width 300-610mm 500-950mm 1000-1500mm 500-950mm 1000-1500mm
Sheet Thickness 0.15-1.4mm 0.15-1.4mm 0.15-2mm 0.25-1.4mm 0.25-1.4mm
Driving Motor 75KW 90KW 132KW 90KW,75KW 132KW, 65KW
Line Speed 25m/min 25m/min 28m/min 28m/min 28m/min
Capacity 180kg/h 300kg/h 550kg/h 450kg/h 650kg/h





Competitive Advantage:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
