Payment & Shipping Terms:
|Certificate:||CE & ISO9001||Port:||QingDao|
|Raw Material:||PVC||Brand Name:||AORUI|
|After-sales Service:||Engineers Availiable To Service||Autoamtic Grade:||Fully Automatic|
|Dimension(L*W*H)):||Acoording To Model||Place Of Original:||Shandong , China|

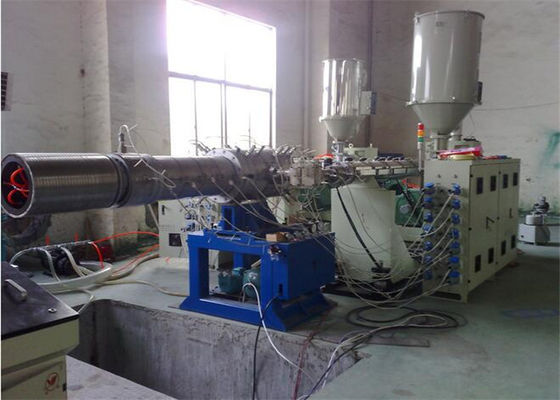

Plastic Machine PVC PE Double Wall Corrugated Pipe Extrusion Machine / Pipe Extruder
1. It is widely used both at home and abroad as it is an easy and reliable coupling without any complex fitting, and replaces the concrete pipe and cast iron pipe. At present, PE double wall corrugated piping is being used extensively to ensure the development of environmental protection during networking of water and sewerage.
2. For PVC pipe, conical twin screw extruder or parallel twin screw extruder are more suitable.

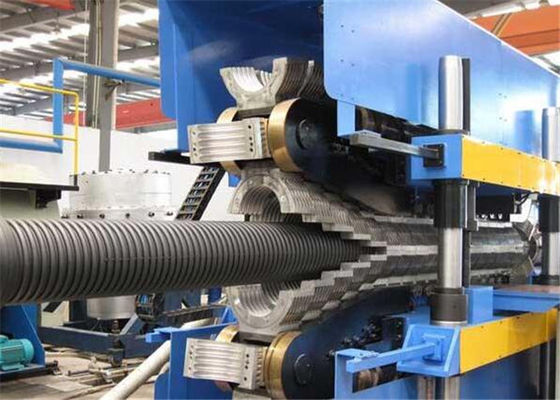

Forming system consists mould and corrugator.Mold blocks can be easily changed and they have air or water cooling system. The belling process is on line.High precision cutting can be guaranteed by cutting machine.The production line can be also be equipped with Simens PLC system.
1. This corrugated production line can be used to produce single-wall or double wall corrugated pipes of PE, PP, PVC, EVA continuously, as well as PA corrugated pipes.
It calso called pvc corrugated pipe extruder/pvc corrugated pipe machine/pvc corrugated pipe production line/pe corrugated pipe extruder/pe corrugated pipe machine/pe corrugated pipe extrusion line/pe corrugated pipe production line.
2. This production line mainly used PVC,PE as raw material to produce big-diameter double-wall corrugated pipe. This kind of pipe is light,good impact-resistance,good anti-corrosion,good heat-resistance and widely used for electricity cable protection,city drainage,agriculture irrigation,construction water delivery, etc.

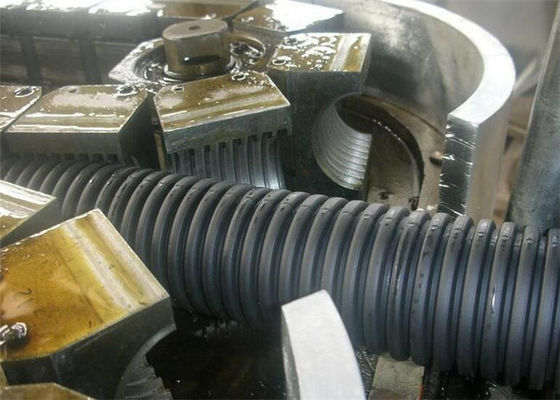

3. The die of the shaping former has high accuracy, good exchangeability of block mould, two cooling ways of water and wind is equipped, on-line end belling can be achieved to assure mechanical property of pipes. Round double-pole cutter has good cut precision, the whole line adopts Siemens PLC control system and has highly self-control ability. If you change extruder and some related components then you can get PVC big-diameter reinforcement corrugated pipe in the same line.
|Screw and Barrel||
Barrel Screw and Barrel Material 38CrMoAlA,Nitriding,
Surface Chrome plate
Nitriding Layer Thickness:0.5~0.7mm
|Effectual Working Length of Screw||1800mm|
|Speed of Screw||1~37rpm|
|Main Motor Power||55KW|
|Main Motor Timing Method||55KW ABB inverter|
|Force Feeder Motor Power||0.75KW|
|Force Feeder Motor Timing||0.75KW ABB inverter|
|Barrel Heating Method||Foundry Aluminum Heater, include force cooling fan,|
Barrel Heating Power
Main Electrical Equipment
|Japanese OMRON Temperature Control Meter,Siemens Contactor,
Shanghai TAYEE Button and Indicator Light,
Suzhou ChuangShuan digital display meter
The double wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
