Product Details:
|
| Autoamtic Grade: | Fully Automatic | Certificate: | CE & ISO9001 |
|---|---|---|---|
| Voltage: | 380V 50HZ | After-sales Service: | Engineers Availiable To Service |
| Processing Type: | Extrusion | Material: | Pvc |
| Screw Design: | Double Screw | Port: | QingDao |
| High Light: | double screw extruder,twin screw extrusion machine |
||
pvc Plastic Corrugated Pipe Production Line , PVC Pipe Extrusion Machine / PVC Extruder
Quick detail:
1. PVC pipes of various diameters and wall thickness are used in the agricultural and constructional plumbing, cable protection, etc.

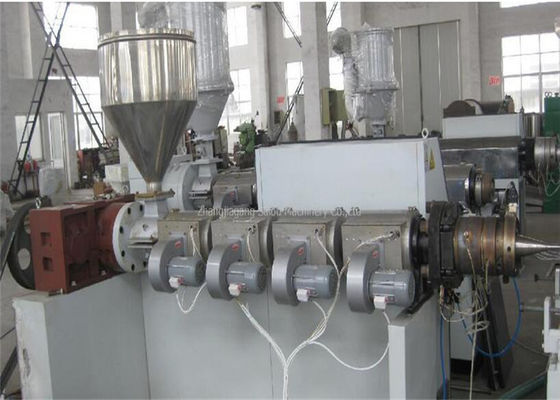

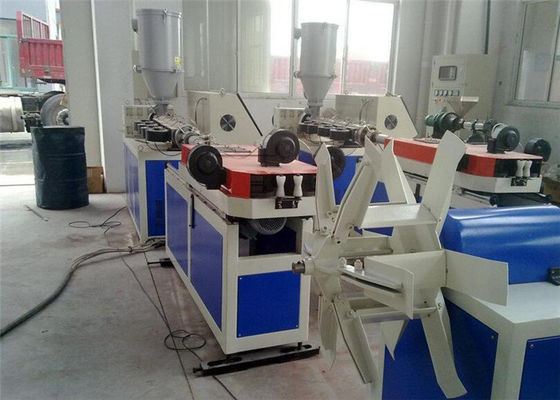

2. This line consists of the conical twin-screw extruder, a vacuum forming machine, a traction machine, a cutter, etc. The twin-screw extruder and the traction machine are equipped famous brand AC frequency converting control device. The vacuum pump and the electric motor employ products of good quality. The traction machine works by caterpillars of 2, 3, 4 or 6.
3. Two cutting types: saw blade cutting or planet cutting. Length measuring apparatus and the intensifying device can be attached.
4. Stable performance and high production efficiency.
Description:

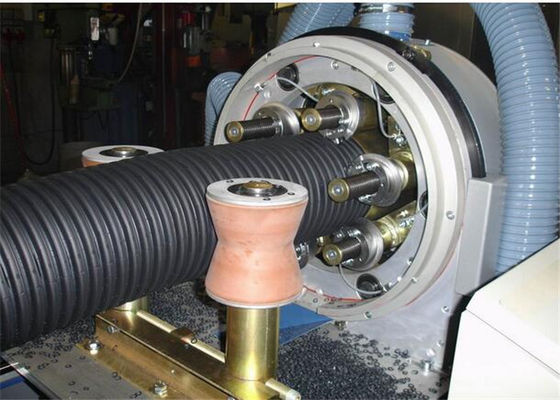

1. This line is used to produce double wall corrugated pipes. This product has the features of light weight, high corrosion resistance, erosion resistance and cold and not resistance. It is widely used in such fields of communications, electric wire & cable laying and agricultural irrigation, etc.
2. PVC corrugated pipe is widely used for water drainage system.It is a fully computer controlled line.It features high stable output capacity,and highly automatic operation.
Specifications:
| Screw and Barrel |
800~900HV Barrel Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate Nitriding Layer Thickness:0.5~0.7mm Surface Rigidity:800~900HV |
| Screw Diameter | Φ80/156mm |
| Effectual Working Length of Screw | 1800mm |
| Speed of Screw | 1~37rpm |
| Main Motor Power | 55KW |
| Main Motor Timing Method | 55KW ABB inverter |
| Force Feeder Motor Power | 0.75KW |
| Force Feeder Motor Timing | 0.75KW ABB inverter |
| Barrel Heating Method | Foundry Aluminum Heater, include force cooling fan, |
|
Barrel Heating Power |
24KW |
|
Capacity |
250~380kg/h |
|
Main Electrical Equipment |
Japanese OMRON Temperature Control Meter,Siemens Contactor,
Shanghai TAYEE Button and Indicator Light, Suzhou ChuangShuan digital display meter |
Applications:
The double wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
Competitive Advantage:
1. good quality and stable operate
2. high speed plastization
3. CE & ISO9001 certificate
4. good pre-sales and after-sales service
