Product Details:
|
| Raw Material: | Pvc | Certificate: | CE & ISO9001 |
|---|---|---|---|
| Place Of Original: | Shandong , China | Application: | Pipe |
| Weight: | 3-16T | Voltage: | 380V 50HZ |
| Other Name: | Pvc Pipe Production Line | Plastic Processed: | Pvc |
| High Light: | double screw extruder,two screw extruder |
||
High Quality Twin Screw Plastic PVC Pipe Making Machine / Plastic Pipe Extrusion Line
Quick detail
1. PVC pipes extrusion line has its advantage of high production capacity. Comparing with the common extrusion line, this PVC pipes extrusion line has much less investment at equipment cost, factory investment and production investment. PVC pipes extrusion line has high capacity with less production consumption.
2. It is mainly used in producing various diameters and wall-thickness of PVC pipes for aggriculture and constructional plumbing cable laying etc.

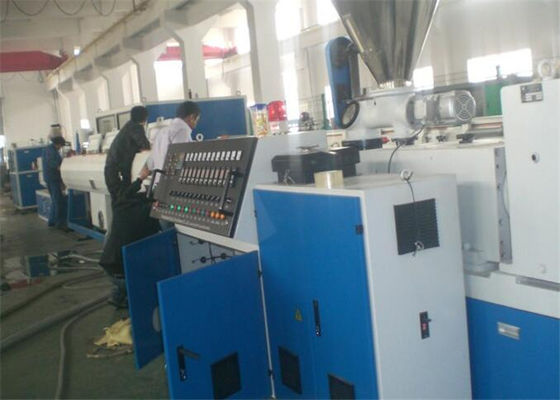

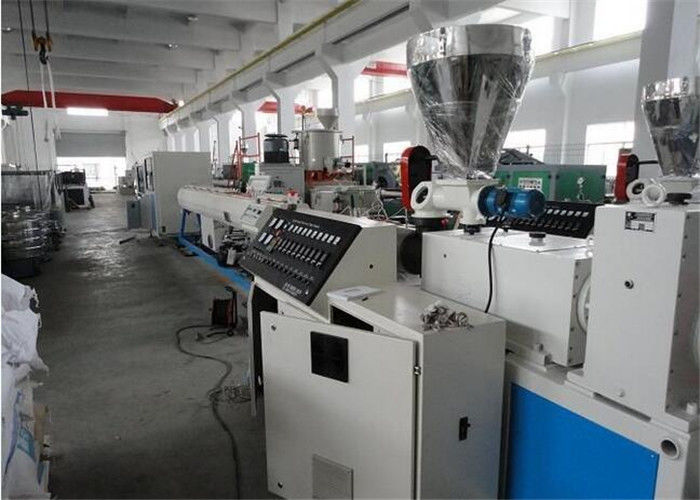

3. This PVC pipe production line/machine mainly consists of twin conical (parallel) screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.
Description:
1. The pvc pipe extrusion machine , with special device , it can produce inner wall sprial pipe , inner wall hollow pipe , and core layer bulpo pipe , etc. it can also produce PP , PE , ABS & PPR , PEX, silicon core pipe and pipe material of other material.
2. The planet - shaped cutting machine is fully automatic computer digital control , it has such advantages of simple operation , reliable property , etc. it has reached world advanced level.
3. Our production lines have been exported to countries all over the world.
With the development of our company, we adopt advanced technology from european companies such as battenfeld, krauss-maffei, berstorff for all the key parts.All the electrical elements and control systems are using world brand such as simens and schneider.Also we may design according to your requirements.With the better after sale service and good quality, most of our customer are quiet satisfacted with our products.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
PVC pipe is widely used in drainage system,irrigation,electric conduit and so on. GF series plastic pipe material production line mainly used in the area of agricultural water supply systerm , architectural water supply systerm.
Our competetive advantages:
1. good quality and reasonable price
2. good pre-sales and after-sales service
3. engineers availiable to service
