Product Details:
|
| Condition: | New | Screw Design: | Twin Screw |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Model Number: | SJSZ92/188 |
| Application: | Board | Brand Name: | AORUI |
| Certificate: | CE & ISO9001 | Plastic Processed: | WPC |
| High Light: | Wood Plastic Extruder,Wood Plastic Composite Extruder |
||

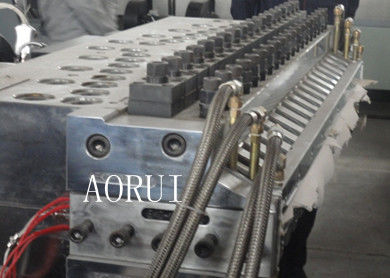

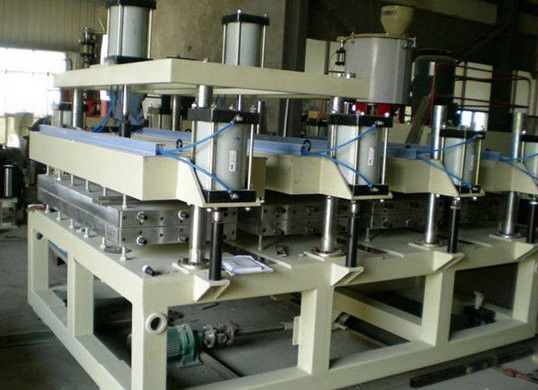

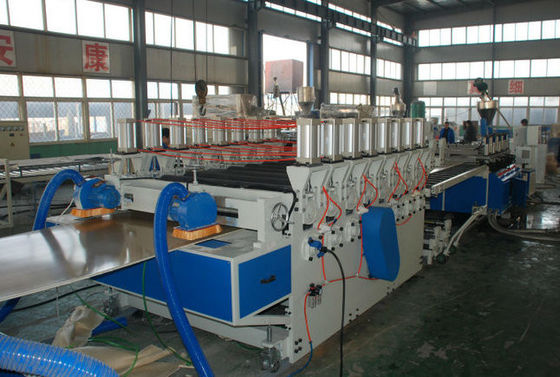

WPC Foam Board Extrusion Machine , WPC Furniture Board Production Line
Quick detail:
1. Working flow:
Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter → Cutter → Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)
2. High efficiency conical twin screw extruder or parallel twin screw extruder . It can produce transparent PVC soft and rigid sheet and free foam board . The thickness is from 3mm to 30mm, width is from 1200mm to 2050mm. This sheet is mostly used in transportation , advertisement,furniture industry ect.
Description:
1. wpc furniture board is wpc crust foam board or Celuka foam board. Smooth, light weight , high density, high hardness , moisture-proof and waterproof , mildew proof and anti-corrosion , non-toxic and no benzene , green products , not easy to deformation resistance to compression.
2. Our wpc foam board machine include the special Twin-screw extruder, mould and other auxiliary machines . We supply you the best material formulation and all of technology. It is with big output, stable extrusion, high foaming, good and wear-resisting surface and so on.
3. PVC Free Foam Sheet / PVC Free Foam Board is the new man-made material, the main component is PVC, it has the fine chemical stability, anti-corrosive and high intensity, it can be the substitute of wood, it is widely used in the building, advertisement and decoration.
Specifications:
| Model | JG-MSC80/156 | JG-MSC80/156-FH | ||
| Screw dia. | mm | Ø80/Ø156 | Ø80/Ø156 | Ø65/Ø132 |
| Screw quantity | piece | 2 | 2 | 2 |
| Screw speed | r/min | 1-37.7 | 1-37.7 | 1-39.1 |
| Main extruder power | KW | 75 | 75 | 37 |
| Heating power | KW | 36 | 36 | 24 |
| Extrusion output | kg/h | 150-350 | 250-450 | 250-450 |
| Model | BF600 | BF1220 | ||
| Max. product width | mm | 600 | 1220 | |
| Draw-off height | mm | 150 | 150 | |
| Draw-off force | KN | 50 | 50 | |
| Draw-off speed | m/s | 0-3 | 0-2.5 | |
| Total power of auxiliary machine | KW | 35 | 40 | |
| Cooling water consunmption | m3/h | 9 | 12 | |
Application:
Our plastic making machine can make many kinds of plastic productions like:PVC pipe,CPVC pipe,PE/HDPE/PE-RT pipe,PP-R pipe,plastic foamed profile,WPC profile and panel,wood plastic composite and so on.
Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.
We provide plastic machine which can make Agriculture pipe,machines to produce pellet,laminating machine,wooden window frames machine.Our machine can make 3D printer material.
Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.
Competitive Advantage:
1. Good quality and reasonable price
2. Engineers availiable to service
3. Good pre-sale and after-sale service
4. CE & ISO9001 xertificate
