Product Details:
|
| Brand Name: | AORUI | Certification: | CE & ISO9001 |
|---|---|---|---|
| Condition: | New | Screw Design: | Double Screw |
| Inverter: | ABB | Automatic Grade: | Fully Automatic |
| Screw Barrel: | 38CrMOAIA | Plastic Processed: | WPC |
| High Light: | wpc profile extrusion line,wood plastic machine |
||
WPC (PVC) Profile Making Machine , Wood Plastic Conposite Profile Production Line
Quick detail:
1. It is designed for producing various sizes of wood plastic composite products, such as WPC
profiles, WPC board, WPC decorate panel. Our WPC machine has features of low comsumption, low noise, stable running.

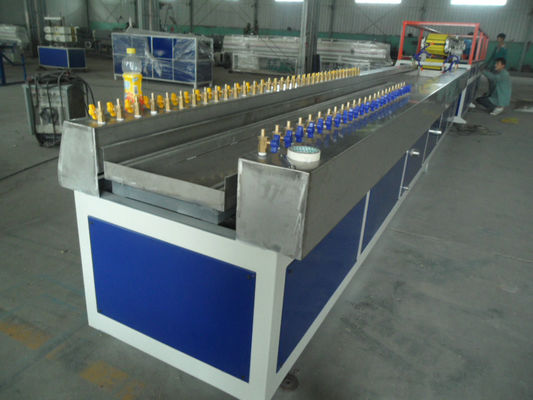

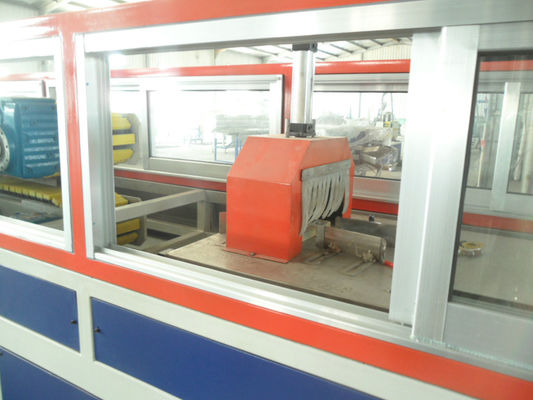

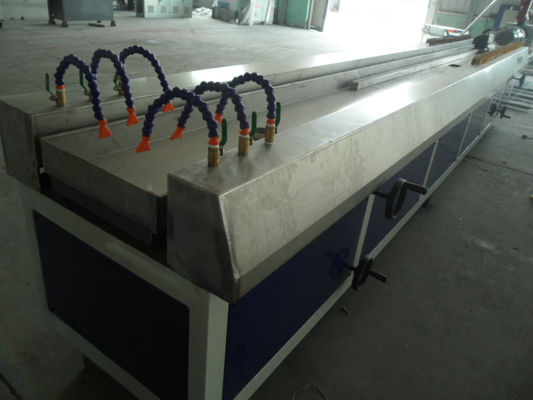

2. This WPC machine include: extruder, mould, vacuum calibration table, hual-off and cutter and
stacker. The extruder of WPC machine adopt special WPC screw and barrel for extrusion. With different mould, WPC machine can produce WPC products with different shapes.
Description:
1. Working flow of WPC(wood plastic) making machine
Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter → Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)
2. Conical twin-screw extruder, suitable for processing PVC powder and WPC raw materials. Changing the moulds to produce many kinds of different PVC profiles. Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker.
3. Screw : Material of screw: 38CrMoAl ,Surface treatment: Nitriding processing, thickness: 0.6 ~ 0,8mm, Polishing Rotating speed (counter rotating): 1-34.7 rpm/min
Barrel: diameter conical 65/132 ,Inner processing: nitrided with thickness: 0.6 ~ 0.8mm
Heating zones: 4 ;Heating mode: Cast alumina + stainless steel covering.
Applications:
YF Series PVC profiles extrusion line is mainly used in PVC plastic steel doors and windows profile,window panels, perforated pipe threading and foam profile extrusion products. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
whatsapp:18561633106
Specifications:
|
Model |
SJSZ65/132,SJSZ80/156,SJSZ92/188 |
|
usage |
extrusion outdoor decorative |
|
raw material |
recycled PE/PP,wood powder, additive material,etc |
|
product size |
maximum:400mm,or according to prdroduct’s drawing |
|
Extruder feature |
Special designed extruder |
|
wood powder ( wood fiber) |
high volume of addition up to 50~75 percent |
|
Plastic proceed |
PP,PE,PVC,wood plastic composite |
|
Auxiliary machine |
Emboss machine,sanding machine,polishing machine |
|
Product type |
Dustbin, Sound insulation board (wall),edging,blinds,bulkhead,curtain rod, |
Competitive Advantage:
1. CE & ISO9001 certificate
2. good pre-sales and after-sales service
3. environment protection
4. engineers availiable to go abroad to service
