Product Details:
|
| Brand Name: | AORUI | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Plastic Processed: | Wpc | Automatic Grade: | Fully Automatic |
| Voltage: | 380V 50HZ | Condition: | New |
| Screw Design: | Twin Screw | After-sales Service: | Engineers Availiable To Service |
| High Light: | wood plastic composite extrusion machine,wpc profile extrusion line |
||
WPC PVC Composite Wood Plastic Profile Production Extrusion Line
Quick detail:
1. WPC profiles production line is the manufacture facilities of PVC plastic profile materiles, including window and door series profile, plate, sheet, foamed profile and foamed ornament plate. The big-size plastic door and window profile production line is developed by our corporation.
2. WPC profiles production line: Needless granulating of materials, mixed with wood powder, the material can be directly used to extrude wood-plastic profiles. WPC profiles production line: Suitable material: PE, PP + wood powder, PVC + wood powder
Description:
1. The whole production line can process all kinds of WPC products such as WPC floor, WPC floor board, WPC profile etc.The machine can produce PE , PP , PVC and wood profile products. These products are mainly applied for making pallets , packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max , 50-75%. This machine can produce the PP , PE , ABS , PS and etc.

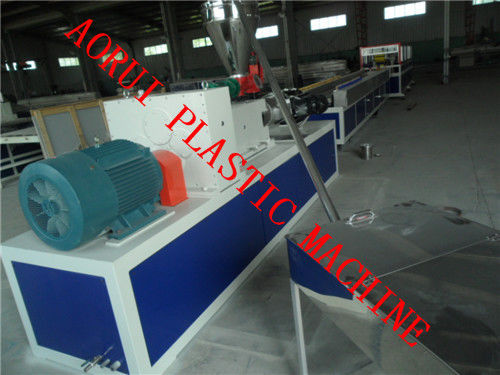

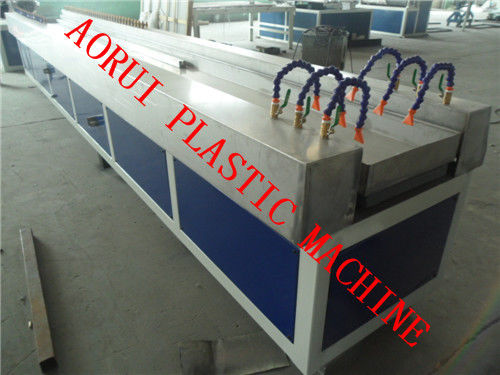

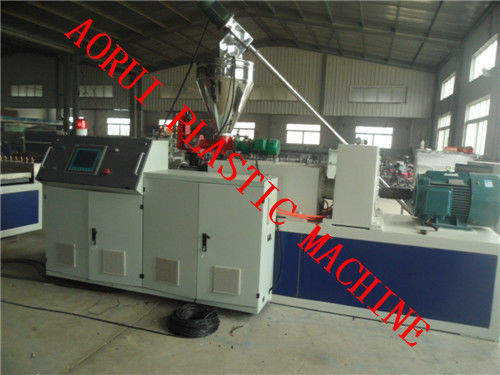

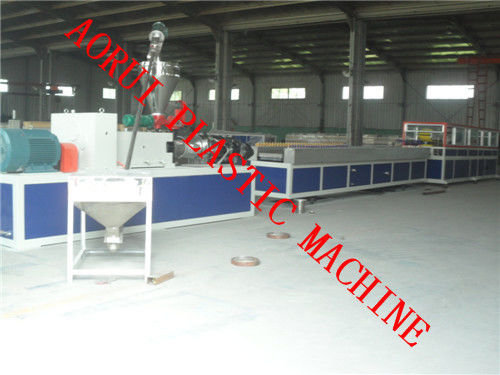

2. The wpc profile production line includes: one set feeding machine , one set double screw extruder , one set high speed vacuum calibration table , one set high speed haul off machine , and one set cutting machine.
3. WPC profiles production line: Adopting the advanced technology from abroad, and formed a complete system with twin conical screw extruder. Plastic Extruding Profile Production machine features high automation degree, stable work performance, high capacity and high efficiency.
4. The wpc profile extrusion line can use the one step extrusion method and also it can use the two-stwp extrusion method alter pelletizing. The two-step extrusion method can save the power and sapce , and the two-step extrusion method features the machine can gain the high output and stable extrusion pressure.
Specifications:
| Model | YF160 | YF180 | YF240 | YF300 | YF400 | YF500 |
| Max. width of profile(mm) | 160 | 180 | 240 | 300 | 400 | 500 |
| Installed power(Kw) | 18 | 26.1 | 31.6 | 31.6 | 31.6 | 37.6 |
| Cooling water (m3/h) | 5 | 5 | 7 | 7 | 8 | 10 |
| Compressing air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
