Product Details:
|
| Model Number: | SJ65/33 | Color: | Bule , White , Black , Yellow |
|---|---|---|---|
| Application: | Strap | Screw Design: | Single Screw |
| Raw Material: | Recycled Flakes | Voltage: | 380V 50HZ |
| Weight: | 4T | ||
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||

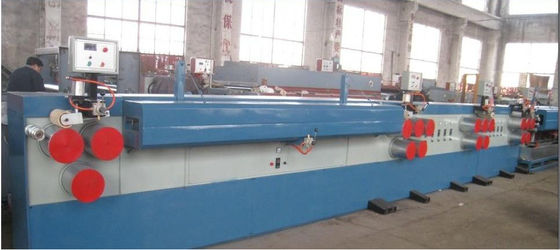

Starapping Band Extrusion Manchinery , Poly Strapping Machine , Plastic Strapping Band Production Line
Quick detail:
PET Strapping Extrusion Machine / PET strapping production line / PET strapping extruder machine
General introduction:
Service condition: 380V 50HZ
Strap width: 5-19mm
Strap thickness: 0.4-1.5mm or customized
Capacity: 50-170kg/h
Raw material: PET granules/recycled PET material
Extruder type: single screw
Description:
Production details:
| 1 | Extruder | equipped with automatic loading& drying machine |
| 2 | Die head and mould | It adopts high quality mould steel which features high speed production, even extruding, low pressure on the die head, high precision, long life span, etc. One mould can produce two pieces, high efficiency |

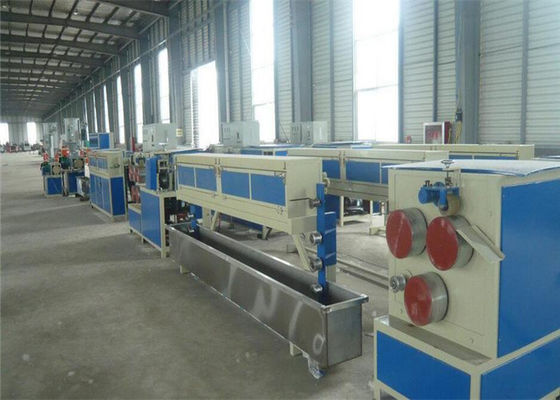

| 3 | Cooling water tank | Stainless steel cooling water tank controls the crystallization degree to the plastic, and guarantees the extension ratio of belt blank. |

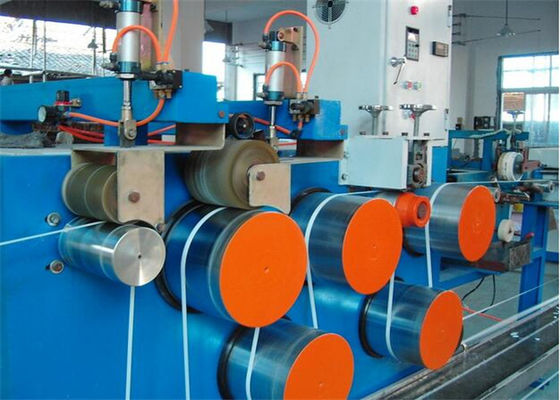

| 4 | First haul off machine | It is used for the first hauling after extruding and cooling. It consists of electrical motor, speed reducer, hauling roller, etc |
| 5 | Thermal oven | It is used for heating of raw band, and realizes the second hot extension Second haul off machine: Consisted by the second hauling tension, electrical motor and the traction roller, etc |
| 6 | Second haul off machine | Consisted by the second hauling tension, electrical motor and the traction roller, etc |
| 7 | Embossing machine | The raw band reaches primary shaping and accepts embossment on its surface, which improves the transverse orientation intensity and surface friction |
| 8 | Calibrating device: | Used to the further fixed cooling to prevent it from distortion of the production. |
| 9 | Third haul off machine | The after forming traction is consisted by the second hauling, tension, electrical motor and the traction roller, etc |
| 10 | Winding machine | Can be used to the coiling of the production ,and the center coiling type is automatic .And it is consisted by the coiling roller, coiling core and the stander, the coiling roller is consisted of electrical motor, reducer and the transmission system |
Technological parameter:
|
Strapping diameter |
6-32mm |
|
Screw diameter |
65 |
|
L/D |
34:1 |
|
Screw material |
38CrMoAlA |
|
Barrel material |
38CrMoAlA |
|
Barrel heating |
Casting aluminum |
|
Barrel cooling |
Water |
|
Driving motor |
37kw |
|
Cooling tank length |
1200mm |
|
Seven Pre-heating roller |
Dia. 215mm |
|
Stretch oven |
Carbon Steel welding |
|
Heating power |
15kw |
|
Five stretch roller |
Dia. 215mm |
|
Three cooling roller |
Dia. 215mm |
|
Calibrating box length |
4000mm |
|
Three roller pulling |
Dia. 215mm |
|
Winding unit |
Automatic winding |
|
Total installation power |
~105kw |
|
Machine dimension |
38000x1300x28000mm |
|
Weight |
18ton |
Application :
Application: PET straps for cotton bales, for Can Package, for Paper Industry, for strapping Steel Coils, for Clay Building Bricks, for Aluminum Ingots, for Fibre Bales, etc.
Competitive Advantage:
