Fully automatic PVC Crust Foam Sheet Extruder for PVC Board Production Line

China Fully automatic PVC Crust Foam Sheet Extruder for PVC Board Production Line supplier
Fully automatic PVC Crust Foam Sheet Extruder for PVC Board Production Line supplier Fully automatic PVC Crust Foam Sheet Extruder for PVC Board Production Line supplier Fully automatic PVC Crust Foam Sheet Extruder for PVC Board Production Line supplier

Large Image :  Fully automatic PVC Crust Foam Sheet Extruder for PVC Board Production Line

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Raw Material: PVC Type: Pvc Foam Board Extrusion Machine
Automatic Grade: Fully Automatic Voltage: 380V 50HZ
Plastic Process: PVC Condition: New
Certificate: CE & ISO9001 Output Capacity: 200-500kg

New Style PVC Crust Foamed Board Plastic Making Machine , PVC Board Production Line



Quick detail:



1. High efficiency conical twin screw extruder. It can produce rigid pvc wpc crust/skinning foam board machine.The thickness is from 3mm to 45mm, width is from 1220mm to 2050mm. This sheet is mostly used in transportation , advertisement,construction furniture industry ect.

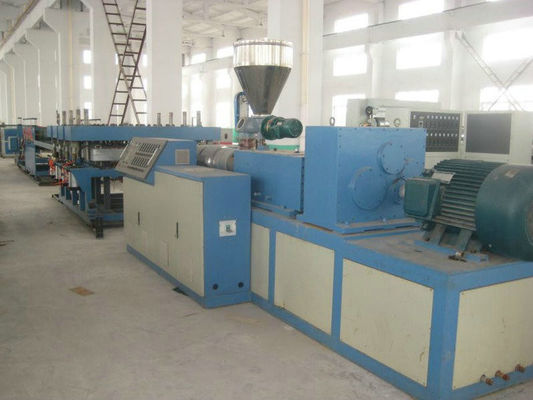

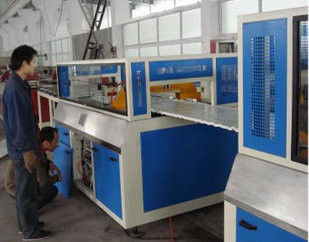

2. Main Composition of PVC Foam Board making machine: SJSZ80/156 conical twin screw extruder , eletric cabinet , Nose and die nould , Forming machine , Water chiller , Cooling braket , Tractor machine , Longitudinal cutter , Vacuum device , Traverse cutter , Automatic discharge , Other auxiliary tools and parts .





Description:

Main Features of pvc foaming board making machinery:

1. Wood-plastic mould plate, resembling wood in appearance, is more fixed in size than wood without cracks, curls, protu berances, and cross grains. It has the features of better physical and chemical property, to ensure higher density and longer service life.

2. Wood-plastic mould plate can be reproduced like wood. It can be cut, planed, made a bond by glue or fastened with nails or screws. It's easy to maintain.

Production flow of pvc foam board machine

Material batching mixing_extruding_molding_vacuum calibrating and cooling_hauling_cutting- final WPC foam boards

Popular Surface treating ways:
- lamination
- hot stamp printing





PVC Board:



it has such characteris as high impact resistance , high rot resistance , high temperature resistance , non-toxic , smooth surface , light , wasy to thermoform , etc.







Main tech parameters of PVC foam board making machine



model SJSZ45 SJSZ51 SJSZ65 SJSZ80 SJSZ92
screw stem diameter(mm) 45/90 51/105 65/132 80/156 92/188
rotational speed of screw stem(r/min) 1-45 1-45.5 1-38 1-36.9 1-34.7
effective work length of screw stem(mm) 1070 1100 1440 1800 2500
main power (kw) 15 22 37 55 110
cylinder heating power(kw) 9.6 11.5 24 36 88
capacity(kg/h) 70 80 250 360 1000
central height of machine(mm) 1000 1000 1000 1000 1000
Net weight(kg) 28000 3000 4000 5000 5500









Application of pvc foam board production line



1. This products is light,storageand transport,construction are rather convenient.

2. This product can be worked with normal tools for wooden material.

3. Drilling ,sawing,nail,planing,bonding can be conducted like wooden material.

4. It is suitable for thermal shaping,thermal bending and fold processing.

5. It can be welded,it can also can be bonded with other PVC material.

6. The surface of this products is smooth, it can be printed.(Clean the surface before printing)





Competitive Advantage:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
