800mm Single Screw PE Pipe Making Machine , Plastic Pipe Production Line

China 800mm Single Screw PE Pipe Making Machine , Plastic Pipe Production Line supplier
800mm Single Screw PE Pipe Making Machine , Plastic Pipe Production Line supplier 800mm Single Screw PE Pipe Making Machine , Plastic Pipe Production Line supplier 800mm Single Screw PE Pipe Making Machine , Plastic Pipe Production Line supplier

Large Image :  800mm Single Screw PE Pipe Making Machine , Plastic Pipe Production Line

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Raw Material: PE Certificate: CE&ISO9001
Screw Design: Double Screw Output: 120-800kg
Application: Water Pipe Inverter: ABB
Color: According To Customer's Requirement Automatic Grade: Fully Automatic

800mm Single Screw PE Pipe Making Machine , Plastic Pipe Production Line





Quick detail



1. Pipes made from PE are usually manufactured by extrusion.This process starts by feeding plastic material from a hopper into the barrel of the extruder.The material is gradually melted by the mechanical energy generated by turning screws and by heaters arranged along the barrel.The molten polymer is then forced into a die,which shapes the polymer into a pipe that hardens during cooling.

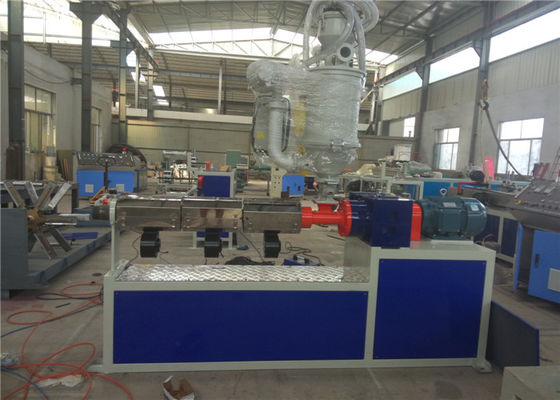

2. PE pipe production line mainly consists of extruder, vacuum calibration tank, haul-off unit, cutter, stacker etc.




Description:



1. Installed with imported termo controllers, imported inverters or converters. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials. Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength. We also can provide a variety of exhaust-type extruder.



2. We are an industrial manufacture factory. We have independent technical team who focus on making machines, all the products are made by our technical team.



3. This machine is mainly used to produce agricultural/water supply pipes, gas supply pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PP PE pipe making machine adopts advanced design concept to ensure the efficient extrusion of PP,PE material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.






Application:





  The production line is mainly used to manufacture for PE plastic pipe, and GF serirs tube auxiliary equipment production line can also be used to produce other plastic, Extruder and GF series tube auxiliary equipments production line take the features of advantages ,reliability and applicability together, and provide strong certification for high-quality plastic tube for customers.







Main Technical Parameters





Model
PE-16/63

PE-20/110

PE-50/160

PE-75/250

PE-110/315

PE-200/450

PE-315/630

PE-400/800

Pipe diameter

16-63mm

20-110mm

50-160mm

75-250mm

110-315mm

200-450mm

315-630mm

400-800mm

Max output

150kg/h

200kg/h

300kg/h

350kg/h

400kg/h

500kg/h

850kg/h

850kg/h

Extrusion speed

1-15m/min

1.2-12m/min

0.6-8m/min

0.5-4m/min

0.4-3.7m/min

0.3-3m/min

0.2-2m/min

0.1-1 m/min

Extruder model

SJ-65/30

SJ-65/33

SJ-75/33

SJ-75/33

SJ-75/33

SJ-90/33

SJ-120/33

SJ-120/33

Installed power

85kw

110kw

125kw

180kw

260kw

325kw

480kw

600kw

Center height

1000mm

1000mm

1000mm

1000mm

1100mm

1100mm

1200mm

1300mm

Line length

35m

38m

38m

40m

42m

52 m

60m

68m





Our comapny competitive:



  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.
