Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Plastic Processed: | PVC | Weight: | 5-20T |
| Color: | Blue Or According To Customer's Requirement | Warranty: | 12 Months |
| Converter: | ABB | Delivery Time: | 35 Days |
| High Light: | double screw extruder,two screw extruder |
||
PVC Pipe Extrusion Machine , Plastic PVC Electric Conduit Pipe Making Machine / Plastic Machine Extrusion Process
Quick detail
1. The feature of our PVC Pipe Mahcine : High efficiency twin screw extruder. It can produce pvc pipes. The pipe diameter range:16-630mm or customes request. The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.

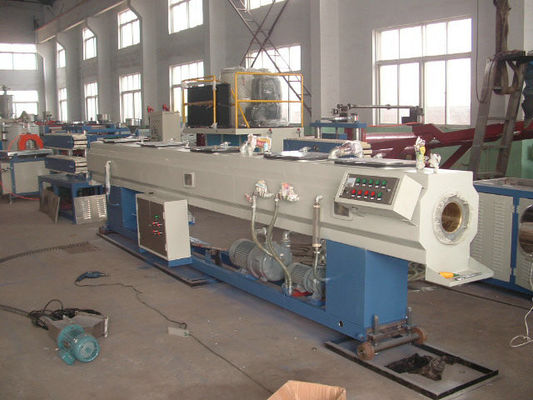

2. The line is composed by conical twin screw extruder, pipe mould, vacuum calibrator, cooling tank, haul-off machine, cutter, stacker, belling machine and so on.
Description:

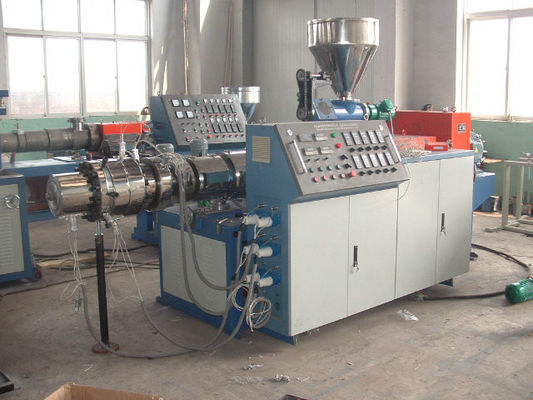

SJSZ65 series conical double screw extruder:
1, screw diameter: 65/132
2, screw effective length: 1440mm
3, screw max. Rotate speed: 34.8r/min
4, the power: 37KW
5, the power of barrel: 24KW
6, center height: 1000mm
7, capacity: Not less than 270kg/h
8, heating and cooling method of barrel: Pottery and porcelain heater, air force cooler
Twin screw extruder with Automatic feeding system -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
The planet-shaped cutting machine is fully automatic computer digital control ,it has such advantages of simple operation , reliable property , etc. it has reached world advanced level.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
with special device ,it can produce inner wall sprial pipe , inner wall hollow pipe ,and core layer bulpo pipe ,etc, it can also produce PP , PE , ABS , & PPR ,PEX ,silicon core pipe and pipe material od other material.
Our competetive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
