Product Details:
|
| Brand Name: | AORUI | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Application: | PVC Corrugated Pipe Machine | Type Of Extruder: | Twin Screw Extruder |
| Warranty: | 12 Months | Temperature Controller: | Omron |
| Motor: | Siemens | Frequency Control: | ABB |
| High Light: | double screw extruder,twin screw extrusion machine |
||
China SJ65 PVC Corrugated Pipe Machine , Single Wall pvc Corrugated Pipe Extruder
Quick detail
1. Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral ,as well as the difficulty in forming of plastic resin .

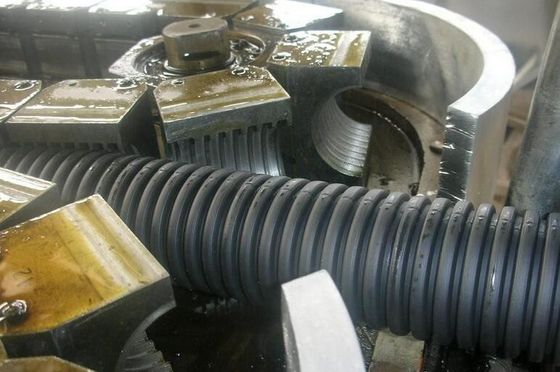

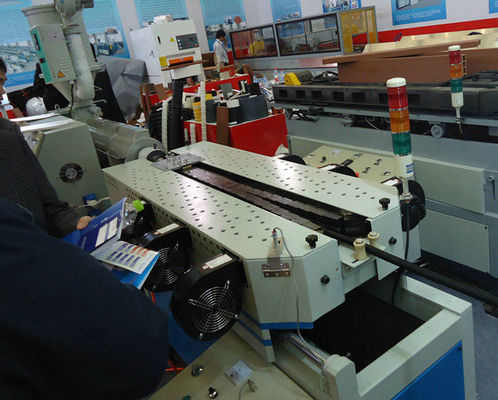

2. The corrugator adopts building blocks design , we can use same basis structure but different forming length of corrugator . The longer forming length of corrugator , the more output of pipe . We can make different forming length corrugator according to different cusotmers' needs.
Description:

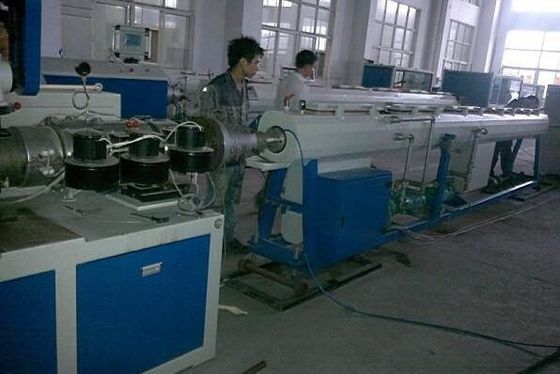

1.This machine is mainly used to produce pvc,pp,pe single wall corrugated pipes, PVC, PP,PEelectric corrugated hose etc. This PVC/PP/PE corrugated pipe making machine adopts advanced design concept to ensure the efficient extrusion, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
2. The electrical control system adopts Complete computer control to automatically conduct to automically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
3. The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside face. All kind of polyolefine material , multi-layers sprial strengthening pipe can be co-extruded for various uses , 80% of recycle materil can be used in producrion.
Main Technical Parameter
Technical data
| Pipe diameter range(mm) | 4.5-9 | 9-32 | 16-50 | 50-100 | ||
| Main machine model | SJ-30 | SJ-45 | SJ-65 | SJ-65 | ||
| Main machine l/d | 30:1 | 28:1 | 30:1 | 30:1 | ||
| Production capacity kg/h | 10 | 40 | 60 | 80 | ||
| Main motor capacity kw | 4 | 11 | 18.5 | 37 | ||
| Moiding machine capacity kw | 1.1 | 1.5 | 1.5 | 2.2 | ||
| Pair of modules | 42 | 35 | 35 | 35 | ||
| Cooling mode | Water cooling and fan cooling | |||||
| Production (m/min) | 6-10 | 8-12 | 8-15 | 4-8 | ||
| Metering mode | inducting mode | |||||
Application:
PE PVC Single wall Corrugated Pipe Production Line can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity/pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .
