PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Hose Corrugated Pipe Production Line

China PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Hose Corrugated Pipe Production Line supplier
PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Hose Corrugated Pipe Production Line supplier PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Hose Corrugated Pipe Production Line supplier PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Hose Corrugated Pipe Production Line supplier

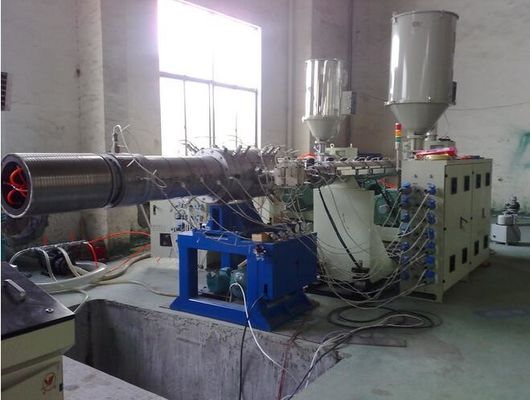

Large Image :  PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Hose Corrugated Pipe Production Line

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Condition: New Application: Pipe
Automatic Grade: Fully Automatic Voltage: 380v 50hz
Screw Number: Single Screw Plastic Processed: PE PP
Temperature Control: Omron Frequency Control: ABB

PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Graden Hose Corrugated Pipe Production Line



Quick detail



1. The corrugated pipe line includes single screw extruder, extrusion mold, pipe corrugate calibration machine, double winder, etc.



2. Good components: Siemens Beide main motor, ABB inverter, Eurotherm DC regulator, Siemens & Schneider low voltage electrics, Omron temperature controller.



3. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.





Description:



1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes. Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.



2. PE PP PVC Corrugated Pipe Production Line Process line:
Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing



3. Features of PE/PP/PVC Single Wall Corrugated Pipe Production Line:

1). Adopt Electric-magnetic heater which can save 40% to 60% electric energy .
2). All electric parts ( breaker/relay/ inverter ) is SIEMENS/SCHNEIDER/OMRON
3). PLC control and simple operation
4). The forming machine has 38 pairs to 72 pairs forming block.
5).Production speed is 15m/min to 25m/min.







PVC PP PE Single Wall Corrugated Pipe Making Machine , Plastic Hose Corrugated Pipe Production Line

Main Technical Parameter



Technical Parameter of PE/PP/PVC Single Wall Corrugated Pipe Machine:






Pipe diameter(mm)

4.5-9

9-32

16-50

Extruder model

SJ-30

SJ-50

SJ-65

Screw L/D

30:1

30:1

30:1

Output kg/h

10

30

50

Extruder motor

4

15

18.5

Corrugators power kw

1.1

1.5

2.2

Moulds pairs

42

38,50

50

Cooling mode

Water Cooling and fan cooling

Extruding speed(m/min )

6-10

8-12

8-12

Account number mode

Inducting speed

Winding pipe mode

Automatic winding and manually









Application:



1. This machine can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA.



2. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...



3. Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.





Our competetive advantages:



  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.
