PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line

PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line
PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line

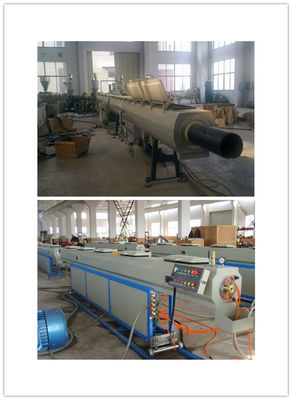

Large Image :  PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line

Description
Condtion: New Screw Design: Single Screw
Voltage: 380V 50HZ Certification: CE & ISO9001
Color: Bule Or According To Customer's Requirement Automatic Grade: Fully Automatic
After-sales Service: Engineers Availiable To Service Application: Pipe
High Light:

Plastic Granulating Machine

,

Plastic Recycling Machine

PE Water / Gas Pipe Production Line , Good Performance PE Water Pipe Extrusion Line



Quick detail



1. PE pipe production line is mainly used in the production of agricultural drainage, construction drainage, cable laying etc. Various kinds of PE plastic pipe material, pipe diameter and wall thickness of the unit by the conical twin-screw extruder, vacuum shaping box, tractor, cutting machine, material, etc.



2. Unique in design, the production line is equipped with BM separate high efficient barrier screw, featuring high automation, easy operation, continuous production and reliability. Plastic pipes produced are characterized by good heat, aging, environmental stress, cracking and creep resistance, and can replace galvanized steel pipes, cast iron pipes and cement pipes, which are choicest products for gas and water transmission between cities.



Description:



1. Single screw extruder, very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h. The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate. Diameter range is 20mm-800mm, which can be changed into inch standard to meet clients’ special requirement.



2. This PE pipe making machine / extruder mainly including :

a. SJ65/33 Single screw extruder with vacuum feeding machine & Drying machine.

b. Single screw extruder for making line

c. Die and mould

d. Vacuum calibration device

e. Spray cooling tank

f. Tractor

g. No dust cutting device

h. Stacker



3. Wroking flow:

Mixer→ Vacuum feeding →Material dry → Single screw extruder →Marking line extruder(co-extrusion)→Vacuum calibration spraying cooling tank → Spraying cooling tank→ Color-ribbon printer → Haul-off machine →Cutter →Stacker



4. The raw material of this plastic water supply pipe production line is usually PE PP PPR HDPE and so on.Single-screw extruder: Using a long L / D, efficient screw extruder high-capacity, high plasticizing capacity.Extruder and hauling machine motor adopts imported AC / DC converter speed regulator.







Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line

Item SJGF75 SJGF160 SJGF250 SJGF450 SJGF630 SJGF800 SJGF1000 SJGF1200 SJGF1600

Diameter

(mm)

20-75 63-160 75-250 160-450 315-450 400-800 500-1000 630-1200 1000-1600
Main machine

SJ25/25

SJ65/33

SJ25/25

SJ65/33

SJ25/25

SJ75/33

SJ25/25

SJ90/33

SJ25/25

SJ120/33

SJ150/33 SJ150/33

SJ90/33

SJ120/33

SJ120/33

SJ120/33

Max. capacity

(kg/h)

120-150 120-300 280-400 500-700 700-900 900-1200 900-1200 900-1400 1000-1700

Total power

(KW)

110 130 260 400 500 600 600 900 1000

If you want more details of our HDPE pipe machine/ HDPE pipe making machine, please let us know!







Application:



It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on. This set is also suitable for the production of crosslinked PE pipes and other olefine products. Our company can provide you with detailed ingredients and complete manufacture line.





Why choose us:



we have more than 15 years experiences in this field.

we are factory , customers can go to our factory to see the machine

we have CE&ISO9001 certificate

We are a professional manufacturer of plastic machinery in China

our engineers can go to aborad to install the machine and trainning the workers



PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line 0PE Water / Gas Pipe Production Line Single Screw Extruder , high Performance PE Water Pipe Extrusion Line 1
