Product Details:
|
| Certification: | CE ISO9001 | Machine Type: | Plastic Board Production Line |
|---|---|---|---|
| Condition: | New | Motor: | Simens |
| Nitrided Layer Thickness: | 0.4-0.7mm | Screw&Barrel Material: | Stainless Steel |
| Temperature Controller: | Omron | Payment Terms: | TT Or L/C |
| High Light: | Board Production Line,Panel Production Line |
||
WPC PVC Foam Board Making Machine / Plastic Board Extrusion Line For Decoration
Quick detail:
1. PE WPC PVC Wood plate production line is our company successfully developed a composite self-invented technology, plate by adding pulverized plant fiber, the thickness adjustable, can be a single-or three-tier board, board width 915 ~ 1220mm, widely used in the construction template, furniture, decoration and other industries.
2. Process Flow of pvc foam board production line:
Raw material+wood power+additive→mixing → granulating → conical double screw extruder → sheet extrusion mould →
cooling molding die → vacuum calibration tank → belt haul-off → cutter → rack → finished product inspecting&packing
Description:
1.The production line of electrical parts are used in the world famous brand products, combined with our company for many years plate equipment manufacturing technology and experience to make it more reliable and complete. Its production product surface smooth, bright and clean, size of the error is small, with a can nail can be planed, corrosion-resistant, fire retardant, and many other advantages.
2. It has such characteristics as high impact resistance , high rot resistance , high temperature resistance , non-toxic , smooth surface , light , easy to thermoform , etc.
Application: such as wire plate, environment protection material , venting equipment , semiconductor equipment , etc.
Production scope: thickness 1-30mm width 3000mm(under)
3. This technology is suitable to produce WPC products at high value with variety of plastic and nature fiber,and the material is 90% of waste plastic and waste natural fiber. With scientific and reasonable technology,the machine has high efficiency and runs stably. The parallel twin screw extruder is used to mix the wood and plastic,and get good homogeneous melt. This is one step WPC extrusion technology,which saves energy.
Main technical parameters:
|
Production name |
PVC wood plastic board |
Max Product width |
1220mm |
Production thickness |
3-25mm |
Suitable resin |
PVC + wood powder |
Main power |
380V*50HZ three phase |
Controlling power |
220V*50HZ single phase |
Max air consumption |
60L /min |
Max Cooling water consumption |
80L /min |
Output |
350kg /h |
Applications:
1. Building outdoor wall board, indoor decoration board, partition board in office and house.
2. Screen printing, flat solvent printing, engraving, billboard and exhibition display.
3. Chemical anticorrosion project, special cold project, environmental protection.
Competitive Advantage:
1.Long service life
2.Power save

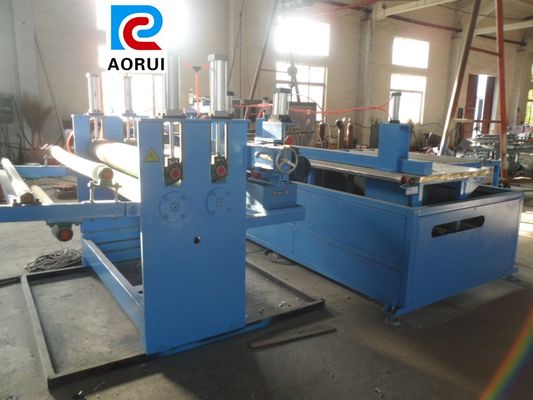

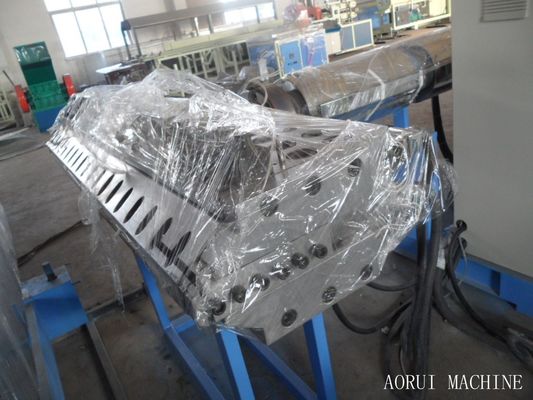

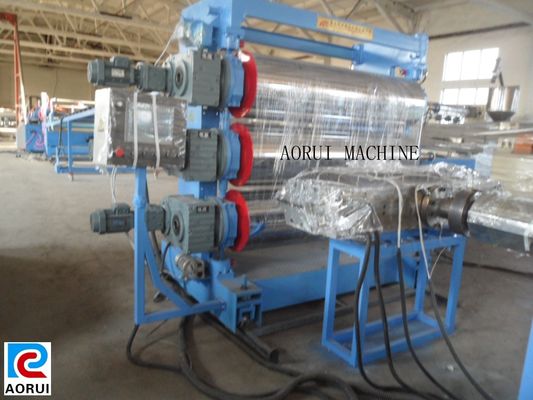

Shipping pictures:
