Product Details:
|
| Brand Name: | AORUI | Voltage: | 380V 50HZ |
|---|---|---|---|
| Place Of Original: | Shandong , China | Automatic Grade: | Fully Automatic |
| Condition: | New | Payments Terms: | TT Or L/C |
| Temperature Controller: | Omron | Screw Number: | Two |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||
PVC Profile Production Line For Door and Window , PVC WPC Profile Extrusion Line
Quick detail:
1. PVC profile making machine can produce PVC window and door profile, PVC windowsill, PVC skirting, door frame, furniture edge, decorative profile.
2. The line use our original technology and the formula, according to different profiles section, different usages, design the proportion of the different products, with different specifications for the wood-plastic twin-screw extruder, traction for the company we used a unique technology, steady work, good reliability, great traction.
Description:
1. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
2. This belt extruding Machine can be used to produce various kinds of belt products including PVC sealing water stop belt, coarse surface round belt, tri-angle belt, pentagon belt, hexagon belt, anti-skid belt etc. It includes main extruder, precision extruding die and calibration system, haul off unit, cutter or winder.
3. capacity: 15-60kgs/hour;Special alloy screw, it adopts imported frequency inverter for extruder and haul off device; Die uses German advanced technique; 304 stainless steel material applicable raw material:PP, PE, PS, ABS, PVC, TPR, PTE, PC.Oversea service, installation, staff trainning and technical support.
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 | YF1200 |
| Max width of board(mm) | 180 | 240 | 300 | 600 | 900 | 1200 |
| Drawing heighe(mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 2 | 2 | 2 | 30 | 40 | 50 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 | 45 |
| Cooling water consume | 6 | 6 | 6 | 9 | 12 | 15 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Applications:
It is mainly used for producing various sizes of WPC PVC profiles, window door profile, decking floor, ceiling panel and so on. Our PVC profile machine has features of low consumption, high output, stable running.

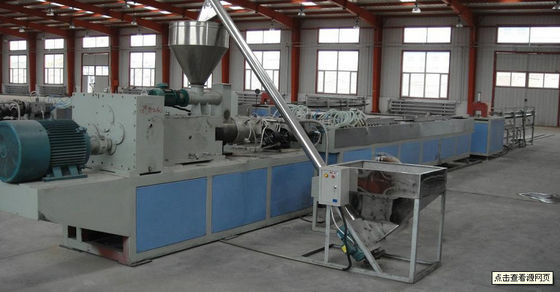

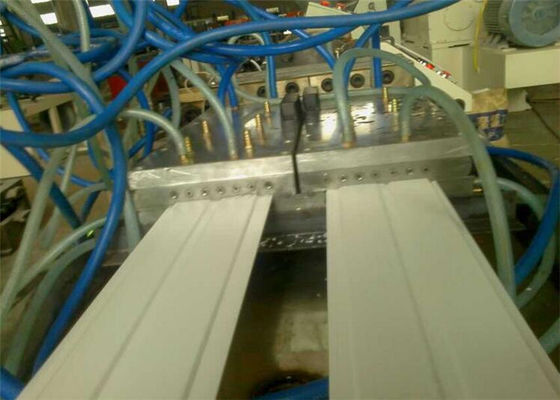

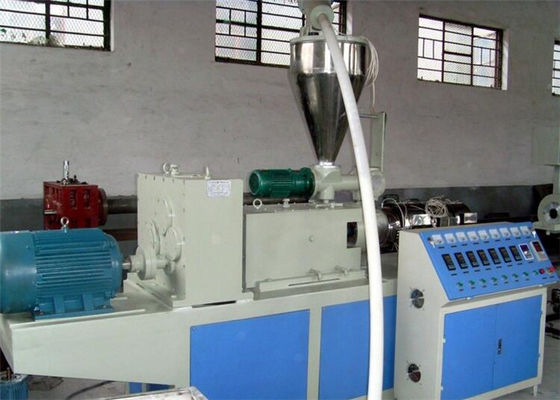

Normal PVC profile production line is composed of main extruder, mould, vacuum calibration table, haul-off, cutting and stacker.

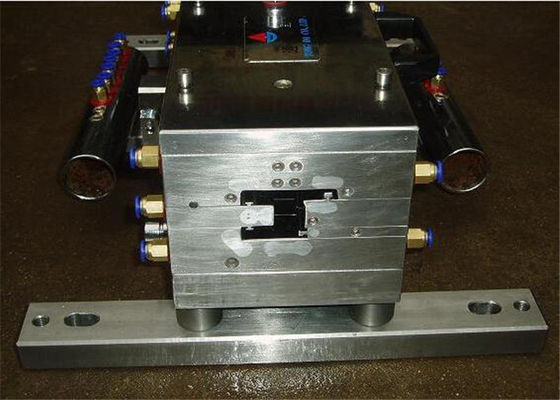

By changing different mould, PVC profile making machine can produce many PVC plastic profile products with different shapes.
Competitive Advantage:
